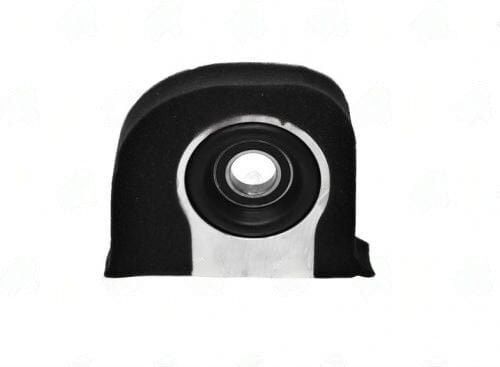

2880-48 – Center Support Bearing – Mercedes Application – 1.181″ ID – 3.000″ Center Bearing To Base
$105.19
10 in stock
Description
Mercedes-Benz application center support bearing with 1.181″ bore and 3.000″ center-to-base height; tall rubber-isolated assembly for Mercedes two-piece propshaft elevated hanger.
Full Description
2880-48 -- Mercedes-Benz Center Support Bearing, 30 mm Bore, 3.000" Drop
At 3.000" center-to-base height, the 2880-48 is one of the taller Mercedes-Benz center bearing assemblies in the 30 mm bore range. This height is used on Mercedes models where the floor tunnel crossmember sits significantly above the propshaft centerline -- typical of larger Mercedes sedans and wagon variants with deeper tunnel structures.
The 3.000" drop bracket introduces measurable bending moment at the crossmember fastener location. On vehicles that see high-cycle use (taxis, fleet vehicles), the crossmember mounting threads fatigue faster than on private use vehicles. Check the crossmember thread engagement depth before installation -- if the threads show pull-out damage from a previous over-torque event, the crossmember insert must be replaced (Helicoil or equivalent) before the new center support bearing is installed. Mercedes OEM references in the A 210 and A 220 series; confirm via STAR parts catalog by VIN.
Additional information
| Application | MERCEDES |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 3.000 |
| Ctr to ctr of mount holes | 2.250 |
| Partn number | 2880-48 |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Center Support Bearing (323) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.181 Center bearing to base 2.375 Ctr to ctr of mount holes 0 Notes 620 Pickup (73-79) Partn number 1280-10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Juke 11-17 Bearing id 1.181 Center bearing to base 570 Ctr to ctr of mount holes 7.125 Notes Bolt heads opposite side of spacers Partn number 1280-15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.181 Center bearing to base 2.375 Ctr to ctr of mount holes 9.375 Notes Pickup 4X4 (79-88) Partn number 1280-20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan, Infiniti Bearing id 1.181 Center bearing to base 2.170 Ctr to ctr of mount holes 6.000 Notes Double metal rings surrounding the rubber and bearing. Comes with nut and washer/spacer Partn number 1280-30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.378 Center bearing to base 2.180 Ctr to ctr of mount holes 0 Notes Infiniti/ Nissan. Like 1280-30 but with larger bearing ID / Bracket not included. comes with new nut washer/spacer Partn number 1280-35 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.181 Center bearing to base 2.500 Ctr to ctr of mount holes 6.000 Notes Nissan / Infiniti / Frontier 4X4 (98-03) Hardbody 4X4 (86-97) Pathfinder 4X4 (87-03) Xterra 4X4 (00-03) QX4 4X4 (00-03) Partn number 1280-40 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.181 Center bearing to base 2.125 Ctr to ctr of mount holes 5.875 Notes 300ZX (90-96) Partn number 1280-50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Infiniti Bearing id 1.181 Center bearing to base 1.125 Ctr to ctr of mount holes 6.000 Notes Q45 (90-96) Partn number 1280-70 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application INFINITI Q50, Q60 Bearing id 1.181 Ctr to ctr of mount holes 6.000 Notes 3 mm spacer Partn number 1280-74 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application INFINITI Q50, Q60, Q70, M37, M56 Bearing id 1.181 Center bearing to base 197 Ctr to ctr of mount holes 6.000 Notes 11 mm spacer Partn number 1280-75 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
