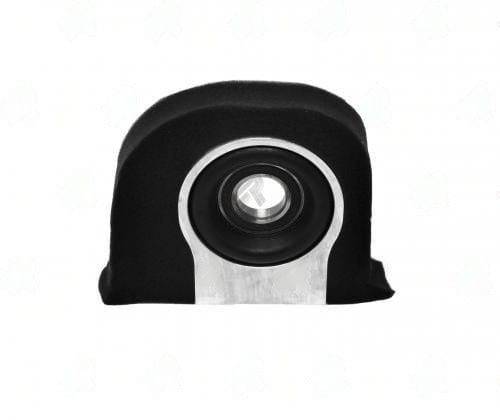

2880-47 – Center Support Bearing – Mercedes Application – 1.181″ ID – 2.910″ Center Bearing To Base
$105.19
10 in stock
Description
Mercedes-Benz application center support bearing with 1.181″ bore and 2.910″ center-to-base height; rubber-isolated assembly for Mercedes two-piece propshaft taller hanger positions.
Full Description
- SKU
- 2880-47
- Application
- Mercedes-Benz (confirm via chassis code)
- Bore ID
- 1.181" (30 mm)
- Center to Base
- 2.910"
- Type
- Rubber-isolated center support bearing
Application notes: the 2.910" center-to-base height on the 2880-47 falls between the 2880-48 (3.000") and the 2880-46 (2.870") in the Mercedes tall-bracket range. The 0.090" difference between these units (2.3 mm) is measurable with a digital caliper and must be matched precisely. Substituting a 3.000" unit on an application that requires 2.910" shifts the propshaft centerline upward by 2.3 mm, producing a driveshaft angle error that creates a vibration at highway speed on the sensitive NVH characteristics of Mercedes-Benz platforms.
Additional information
| Application | MERCEDES |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.910 |
| Ctr to ctr of mount holes | 2.250 |
| Partn number | 2880-47 |
