2780-80 – Center Support Bearing – Bmw Application – 1.378″ ID – 1.625″ Center Bearing To Base
$80.66
Out of stock
Description
BMW application center support bearing with 1.378″ bore and 1.625″ center-to-base height; rubber-isolated assembly for compact BMW propshaft hanger bracket positions.
Full Description
The 2780-80 is calibrated for BMW propshaft applications where the hanger bracket sits only 1.625" from the center of the bearing to the mounting base. This low-profile dimension is typical of compact and mid-size BMW models where the transmission tunnel restricts available bracket height. Installing a taller unit forces the propshaft upward at the center joint, creating an angle misalignment that produces a vibration at motorway speeds above 60 mph.
- Bore ID: 1.378" (35 mm) -- verify with a micrometer against the stub shaft journal
- Center to base: 1.625" -- verify against the removed bearing before ordering
- Rubber isolator: bonded construction, purpose-engineered for BMW propshaft harmonic frequencies
- BMW OEM cross-references in the 26 12 1 229 series depending on model and production year
- The center support bearing inner race is pressed onto the stub shaft -- use a hydraulic press and a correct-diameter bearing driver; never use an impact hammer
Warning: BMW propshaft rubber isolators use a specific durometer compound tuned for the model's driveline frequency. Generic rubber isolators from non-OEM-equivalent suppliers often have incorrect stiffness, resulting in a residual vibration even after correct installation.
Additional information
| Application | BMW |
|---|---|
| Bearing id | 1.378 |
| Center bearing to base | 1.625 |

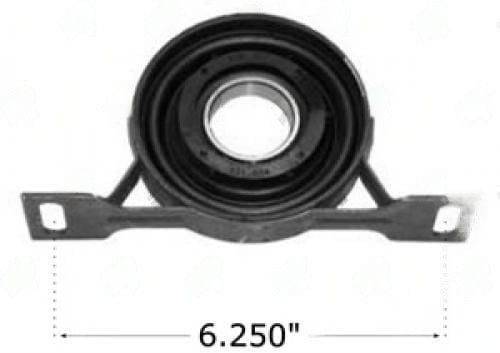

| Ctr to ctr of mount holes | 6.250 |
| Partn number | 2780-80 |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Center Support Bearing (323) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.181 Center bearing to base 2.375 Ctr to ctr of mount holes 0 Notes 620 Pickup (73-79) Partn number 1280-10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Juke 11-17 Bearing id 1.181 Center bearing to base 570 Ctr to ctr of mount holes 7.125 Notes Bolt heads opposite side of spacers Partn number 1280-15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.181 Center bearing to base 2.375 Ctr to ctr of mount holes 9.375 Notes Pickup 4X4 (79-88) Partn number 1280-20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan, Infiniti Bearing id 1.181 Center bearing to base 2.170 Ctr to ctr of mount holes 6.000 Notes Double metal rings surrounding the rubber and bearing. Comes with nut and washer/spacer Partn number 1280-30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.378 Center bearing to base 2.180 Ctr to ctr of mount holes 0 Notes Infiniti/ Nissan. Like 1280-30 but with larger bearing ID / Bracket not included. comes with new nut washer/spacer Partn number 1280-35 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.181 Center bearing to base 2.500 Ctr to ctr of mount holes 6.000 Notes Nissan / Infiniti / Frontier 4X4 (98-03) Hardbody 4X4 (86-97) Pathfinder 4X4 (87-03) Xterra 4X4 (00-03) QX4 4X4 (00-03) Partn number 1280-40 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Nissan Bearing id 1.181 Center bearing to base 2.125 Ctr to ctr of mount holes 5.875 Notes 300ZX (90-96) Partn number 1280-50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application Infiniti Bearing id 1.181 Center bearing to base 1.125 Ctr to ctr of mount holes 6.000 Notes Q45 (90-96) Partn number 1280-70 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application INFINITI Q50, Q60 Bearing id 1.181 Ctr to ctr of mount holes 6.000 Notes 3 mm spacer Partn number 1280-74 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Application INFINITI Q50, Q60, Q70, M37, M56 Bearing id 1.181 Center bearing to base 197 Ctr to ctr of mount holes 6.000 Notes 11 mm spacer Partn number 1280-75 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
