2780-65 – Center Support Bearing – Bmw Application – 1.378″ ID – 1.625″ Center Bearing To Base
$243.76
1 in stock
Description

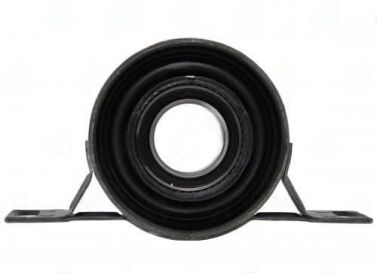

BMW application center support bearing with 1.378″ bore and 1.625″ center-to-base height; rubber-isolated ball bearing assembly for BMW two-piece propshaft systems.
Full Description
Q: How does the 2780-65 differ from the 2780-80 -- both show 1.625" height and 1.378" bore? A: While the center-to-base height and bore ID are the same, the 2780-65 and 2780-80 differ in bracket geometry, mounting slot configuration, or isolator profile. The suffix numbers in the 2780-xx series denote different application-specific bracket shapes within the same bore/height family. Always confirm against the BMW OEM part number from the removed bearing.
Q: My BMW propshaft center support bearing was vibrating. I replaced it but the vibration returned after 10,000 miles -- why? A: Repeated short-interval failure almost always points to a flex disc (guibo) that has deteriorated, transferring torsional shock loads through the propshaft to the center bearing. Replace the flex disc concurrently with the center bearing on BMW applications; these two components work as a system.
Q: What is the correct press force for installing the BMW center bearing onto the stub shaft? A: BMW specifies hydraulic press installation with a drift tube sized to contact only the inner race. Pressing force varies by shaft condition but typically requires 2--4 kN for a correctly-dimensioned stub shaft. Heating the bearing to 80°C before installation reduces press force and prevents brinelling of the inner race.
Q: My BMW propshaft center support bearing was vibrating. I replaced it but the vibration returned after 10,000 miles -- why? A: Repeated short-interval failure almost always points to a flex disc (guibo) that has deteriorated, transferring torsional shock loads through the propshaft to the center bearing. Replace the flex disc concurrently with the center bearing on BMW applications; these two components work as a system.
Q: What is the correct press force for installing the BMW center bearing onto the stub shaft? A: BMW specifies hydraulic press installation with a drift tube sized to contact only the inner race. Pressing force varies by shaft condition but typically requires 2--4 kN for a correctly-dimensioned stub shaft. Heating the bearing to 80°C before installation reduces press force and prevents brinelling of the inner race.
Additional information
| Application | BMW |
|---|---|
| Bearing id | 1.378 |
| Center bearing to base | 1.625 |
| Ctr to ctr of mount holes | 6.300 |
| Notes | measured from top of bracket to center line |
| Partn number | 2780-65 |
