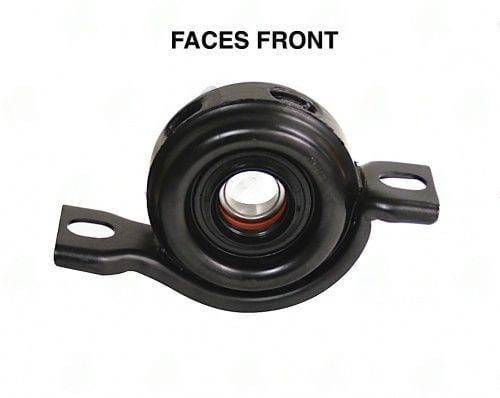

2680-50 – Center Support Bearing – 1.102 – 1.500 – 6.625
$102.73
8 in stock
13
People watching this product now!
Description
2680-50 center support bearing for Mazda and Kia applications. Bearing ID 1.102″, center-to-base 1.500″, mount hole spacing 6.625″ with offset bracket mounting at 0.50″ and 1.50″.
Full Description
2680-50 Center Support Bearing – 1.102" ID – 6.625" Mount Spacing
The 2680-50 is a center support bearing with a 1.102" bearing ID and a center-to-base measurement of 1.500". The mount hole center-to-center spacing is 6.625". This unit is listed for multiple applications including Mazda and Kia platforms. The bracket features an offset mount configuration: one bracket sits at 0.50" and the opposite side mounts at 1.50".
Specifications
- Part Number: 2680-50
- Application: Multiple (Mazda, Kia)
- Bearing ID: 1.102"
- Center Bearing to Base: 1.500"
- Ctr to Ctr of Mount Holes: 6.625"
When fitting the 2680-50, confirm the midshaft stub OD matches the 1.102" bearing bore before pressing. The offset mount geometry — 0.50" on one side and 1.50" on the opposite bracket — must match the vehicle crossmember exactly; swapping sides will misalign the driveshaft centerline.
The 6.625" center-to-center mount hole spacing is shared across several Mazda and Kia applications; cross-reference the offset dimension (0.50" / 1.50") against the specific chassis to confirm the 2680-50 is the correct variant rather than a related part in the 2680 series.
Additional information
| Application | MULTIPLE |
|---|---|
| Bearing id | 1.102 |
| Center bearing to base | 1.500 |
| Ctr to ctr of mount holes | 6.625 |
| Notes | Mazda Kia. CB mounts at an offset .50″ AND 1.50″ opposite bracket.. |
| Partn number | 2680-50 |
