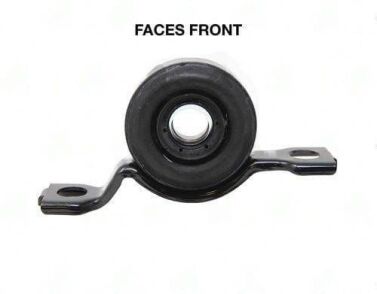

2680-55 – Center Support Bearing – MAZDA – Bearing ID 1.102 – Ctr to ctr of mount holes 7.375
$102.73
6 in stock
18
People watching this product now!
Description
2680-55 Center Support Bearing for Mazda. 1.102″ ID, 7.375″ mount spacing. Asymmetric offset bracket: one side 2.25″ below, other 1.25″ below. Verify fitment.
Full Description
2680-55 Center Support Bearing – Mazda – 1.102" ID – 7.375" Mount Spacing – Asymmetric Offset Bracket
The 2680-55 is a center support bearing for Mazda applications. Bearing ID is 1.102" and mount hole center-to-center spacing is 7.375". Per the product notes, this bracket mounts at an offset: one side sits 2.25" below the center and the opposite side mounts 1.25" below.
Specifications
- Part Number: 2680-55
- Application: Mazda
- Bearing ID: 1.102"
- Center Bearing to Base: 0 (per product data)
- Ctr to Ctr of Mount Holes: 7.375"
- Notes: CB mounts at offset — one bracket side 2.25" below, opposite side 1.25" below
When fitting the 2680-55, verify the midshaft stub OD matches the 1.102" bearing ID and the Mazda bracket holes are 7.375" center-to-center. The asymmetric offset on this bracket is different from the 2680-60/70 offset configuration — one side drops 2.25" and the other drops only 1.25", creating a 1.00" differential between the two mount points. Bracket orientation relative to vehicle centerline matters for correct bearing alignment.
The 2680-55 mount spacing of 7.375" is wider than the 6.875" used on the 2680-60 and 2680-70. This wider spacing, combined with the unique offset configuration, makes the 2680-55 a distinct bracket from others in the 2680 series. Confirm the Mazda application requires 7.375" mount spacing and the specific offset dimensions described before ordering the 2680-55.
Additional information
| Application | MAZDA |
|---|---|
| Bearing id | 1.102 |
| Center bearing to base | |
| Ctr to ctr of mount holes | 7.375 |
| Notes | CB mounts at an offset . one bracket sits below 2.25″ and the opposite side mounts 1.25″ below |
| Partn number | 2680-55 |
