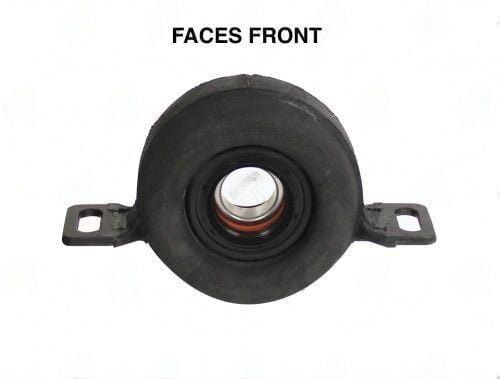

2680-40 – Center Support Bearing – MAZDA – 1.102 – 1.000 – 6.625
$84.84
9 in stock
10
People watching this product now!
Description
2680-40 center support bearing — Mazda. Bearing ID: 1.102″. Center-to-base: 1.000″. Mount spacing: 6.625″.
Full Description
The 2680-40 is the Mazda-application center support bearing with a 1.000" center-to-base height, placing the bearing centerline 1.000" above the mounting surface. This differs from the 2680-50 (1.500" center-to-base) and from the broader 28mm-bore SA54 series that serves Ford and Kia applications with 7.000" spacing.
Mazda rear-wheel-drive platforms from the mid-1970s through the 1990s used a variety of center bearing configurations on two-piece driveshafts. The 1.102" (28mm) inner bore is consistent across several Mazda applications, but bracket height and hole spacing vary between model years.
| Specification | Value |
|---|---|
| Part Number | 2680-40 |
| Application | Mazda |
| Bearing ID | 1.102" (28mm) |
| Center-to-Base | 1.000" |
| Mount Hole Spacing | 6.625" |
Before ordering, confirm the 1.000" bracket height matches your existing bearing. If your original bearing bracket height is closer to 1.500", order 2680-50 instead. The 6.625" hole spacing is shared with 2680-50, so the footprint is interchangeable between these two variants. If your spacing is 7.000", refer to the SA54-25-28 series.
Additional information
| Application | MAZDA |
|---|---|
| Bearing id | 1.102 |
| Center bearing to base | 1.000 |
| Ctr to ctr of mount holes | 6.625 |
| Notes | MAZDA |
| Partn number | 2680-40 |
