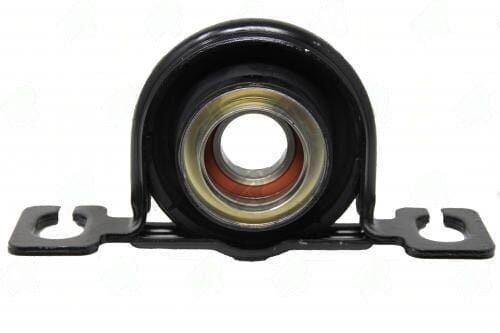

2680-14 – 14 – Center Support Bearing – Mazda Cx 5 (13 17) Application – 1.181″ ID
$88.12
10 in stock
Description
2680-14 center support bearing, Mazda CX-5 2013-2017, 1.181″ bore, 1.791″ center-to-base height, 8.066″ mount spacing.
Full Description
- Part Number
- 2680-14
- Application
- Mazda CX-5 2013-2017
- Bearing Bore
- 1.181"
- Center-to-Base Height
- 1.791"
- Mount Hole Span
- 8.066" center-to-center
The Mazda CX-5 AWD driveshaft uses a two-piece rear propshaft with a bracket-mounted carrier bearing at the tunnel. The 8.066" mount span on the 2680-14 is wider than most European CSB applications, reflecting the CX-5's wider rear floor structure. An unusual specification on this carrier: the 1.791" center-to-base height is not a round number -- it is set precisely to keep the rear shaft section running within Mazda's 1.5-degree maximum operating angle. If the replacement bracket is shimmed or the mounting holes are wallowed out, the shaft angle changes and vibration returns. Confirm hole spacing with a caliper. Browse the center support bearing range for other Mazda fitments.
Additional information
| Application | Mazda CX-5 (13-17) |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 1.791 |
| Ctr to ctr of mount holes | 7.000 |
| Partn number | 2680-14 |
