2680-25 – 25 – Center Support Bearing – Dodge, Chrysler Application – 1.181″ ID
$60.58
2 in stock
Description

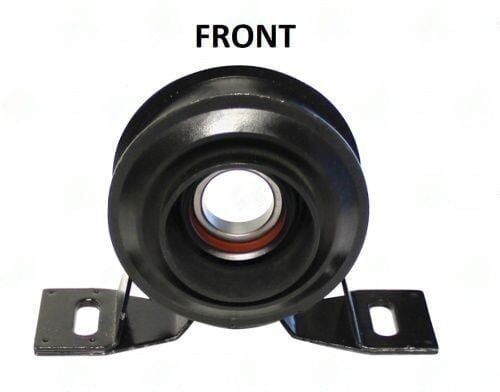

2680-25 center support bearing, Dodge/Chrysler application, 1.181″ bore, 2.375″ center-to-base, 6.625″ mount hole spacing.
Full Description
2680-25 -- Dodge and Chrysler Driveshaft Center Support Bearing
Chrysler RWD and AWD platforms from the 1990s through mid-2000s used a two-piece driveshaft design with a floor-mounted carrier bearing. The 2680-25 is a direct-fit replacement: bore 1.181", center-to-base 2.375", mount hole span 6.625" center-to-center. These Chrysler platforms are known for isolator rubber that cracks at the bond line after 80,000-100,000 miles, particularly in climates with wide temperature swings.
If the original unit shows lateral movement of the stub shaft inside the bearing (i.e., you can wiggle the center of the propshaft side-to-side), the inner race has failed and the shaft is running on the cage. At that stage, vibration has already allowed the front and rear shaft sections to move out of their factory phase relationship -- check the factory paint stripe alignment marks on reassembly.
See all Dodge and Chrysler fitments in the center support bearing catalog. Cross-references: Spicer SPL100 series carrier bearings (verify by model year).
Additional information
| Application | Dodge, Chrysler |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.375 |
| Ctr to ctr of mount holes | 5.125 |
| Notes | Caravan, Town & Country 02-04 |
| Partn number | 2680-25 |
