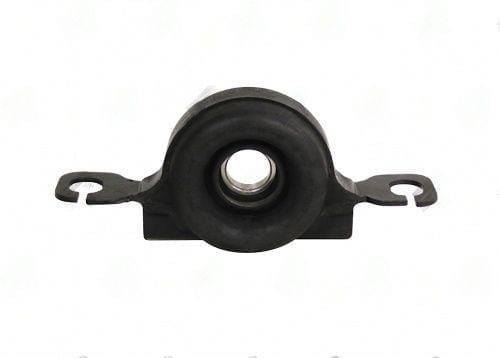

2680-12 – Center Support Bearing – Mazda Application – 1.181″ ID – 750″ Center Bearing To Base
$112.76
10 in stock
Description
2680-12 center support bearing, Mazda application, 1.181″ bore, 0.750″ center-to-base height, 8.625″ mount hole spacing.
Full Description
The 2680-12 is one of the flatter Mazda center support bearings in the catalog, with just 0.750" from the base pad to bearing centerline. This low-profile design is found on Mazda AWD platforms where the propshaft runs very close to the tunnel floor. The wide 8.625" mount span anchors the carrier to a broad crossmember for improved lateral stiffness.
- Part: 2680-12 | Application: Mazda AWD driveshaft
- Bore: 1.181" -- must match stub shaft OD exactly
- Center-to-base: 0.750" -- among the lowest-profile CSB units
- Mount span: 8.625" C-to-C -- confirm before ordering
Tip: On low-profile carriers, the rubber isolator has less material between the bearing bore and the base pad. This makes it more sensitive to overtorquing the mount bolts -- which compresses the rubber and changes the bearing's natural frequency. Torque to spec, not to "snug."
Additional information
| Application | MAZDA |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 750 |
| Ctr to ctr of mount holes | 8.625 |
| Notes | Mazda CX-7 Rear CB ( 3pc Shaft) |
| Partn number | 2680-12 |
