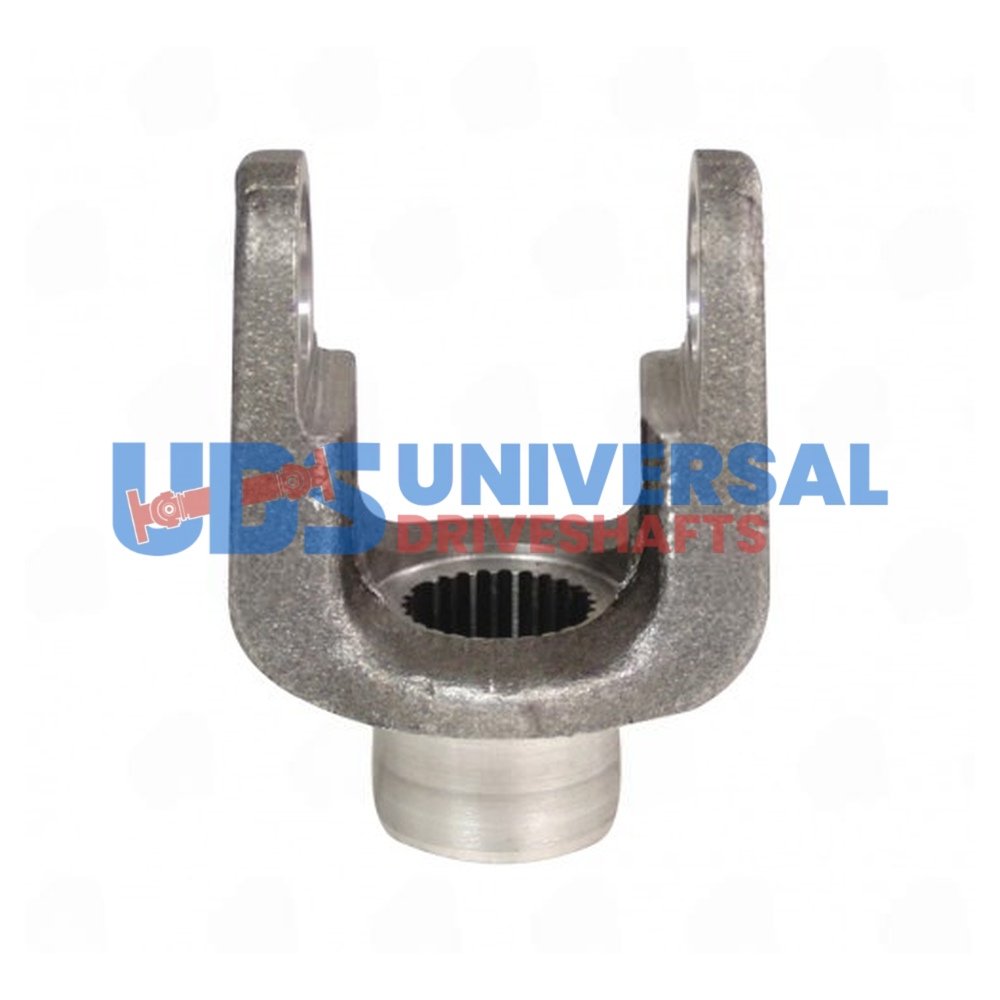

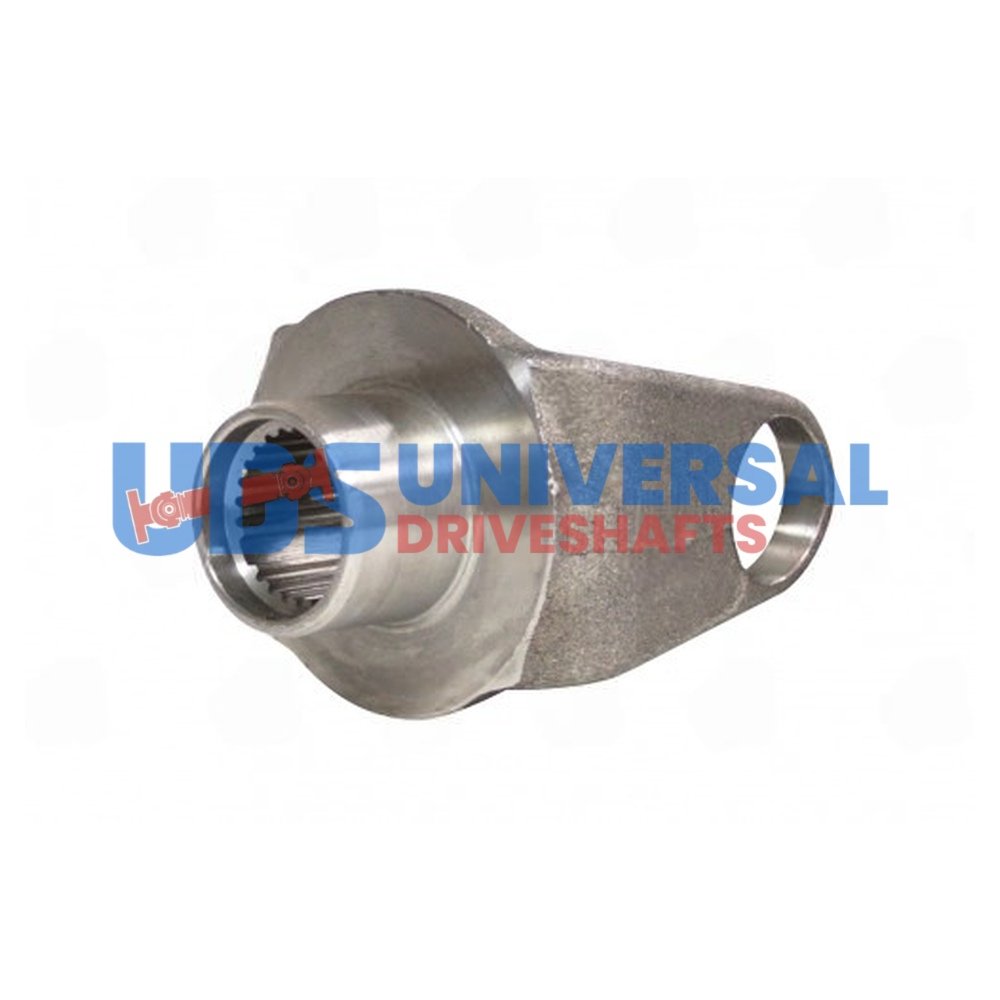

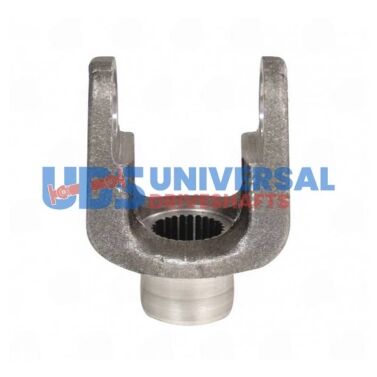

UDS 2604-261 End Yoke – Series 7260 – ISR Style
$100.82
1 in stock
20
People watching this product now!
Description
2604-261 End Yoke — 7260 series, 1.100″ x 24/26 spline | 1.450″ hub dia | 3.250″” CJ-to-end | 1.300″ bore. Complete replacement, spline-specific fit. Count splines before ordering.
Full Description
End yoke failures are usually easy to diagnose: cracked ears, worn splines, or corrosion at the cap bores. Whatever the cause, the 2604-261 end yoke is the direct replacement for 7260 series applications. Spline count and shaft diameter both have to match — verify yours before ordering.
2604-261 End Yoke — Spline Specs & 7260 Series Fitment
The 7260 series covers GM light trucks and vans using the Dana 7260 cross pattern. The 2604-261 end yoke specs: 1.100" x 24/26 spline | 1.450" hub dia | 3.250"" CJ-to-end | 1.300" bore. FITS: MAZDA - MITSUBISHI - KIA. Inside snap ring retention — requires internal circlip pliers. Common on import and front axle applications. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface. Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 2604-261 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.Key Features
- Series: 7260 — GM light trucks and vans using the Dana 7260 cross pattern
- Spline: 1.100" x 24/26 — must match output shaft exactly
- Hub dia: 1.450" — outer dimension, verify clearance
- CJ-to-end: 3.250"" — positions u-joint relative to axle flange
- Bore: 1.300"
- Retention: ISR — Inside snap ring retention — requires internal circlip pliers. Common on import and front axle applications.
- Brand: UDS
- Note: FITS: MAZDA - MITSUBISHI - KIA
Specifications
- SKU: 2604-261
- Brand: UDS
- Series: 7260
- Spline Dia: 1.100"
- Spline Count: 24/26
- Hub Dia: 1.450"
- CJ to End: 3.250""
- Through Hole: 1.300"
- Style: ISR
- Notes: FITS: MAZDA - MITSUBISHI - KIA
Additional information
| Cj to end | 3.250″ |
|---|---|
| Hub dia | 1.450 |
| Notes | FITS: MAZDA – MITSUBISHI – KIA |
| Partn number | 2604-261 |
| Series | 7260 |
| Splines count | 24/26 |
| Splines dia | 1.100″ |
| Style | ISR |
| Through hole | 1.300″ |
| Brand | UDS |
