2580-12 – 12 – Center Support Bearing – Audi A4/ A5/ S5 Application – 1.181″ ID
$121.08
Out of stock
Description

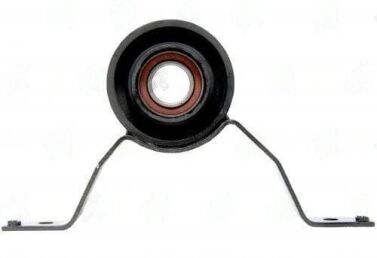

2580-12 center support bearing, Audi A4/A5/S5, 1.181″ bore, 4.331″ center-to-base height, 9.528″ mount hole span.
Full Description
| Specification | Value |
|---|---|
| Part Number | 2580-12 |
| Application | Audi A4, A5, S5 |
| Bearing Bore | 1.181" |
| Center Bearing to Base | 4.331" |
| Mount Hole Span (C-to-C) | 9.528" |
- 4.331" center-to-base is one of the tallest in the Audi 2580 group
- 9.528" mount span is the widest in the Audi A4/A5/S5 range
- Application-specific to the B8 and B9 platform architecture
- Cross-references: Febi 49425 (verify exact year), FAG VKB 33033 (Audi A5)
The Audi A4, A5, and S5 B8/B9 quattro platforms use a two-piece propshaft with a high-mounted center carrier. The 4.331" center-to-base (non-round, 110mm equivalent) reflects Audi's millimeter-level dimensional control. Substituting a 4.125" carrier drops the midshaft center 0.206", enough to push the rear U-joint angle beyond 2 degrees on a lowered S5. Browse the full range at the center support bearing catalog.
Additional information
| Application | AUDI A4/ A5/ S5 |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 4.331 |
| Ctr to ctr of mount holes | 8.937 |
| Partn number | 2580-12 |
