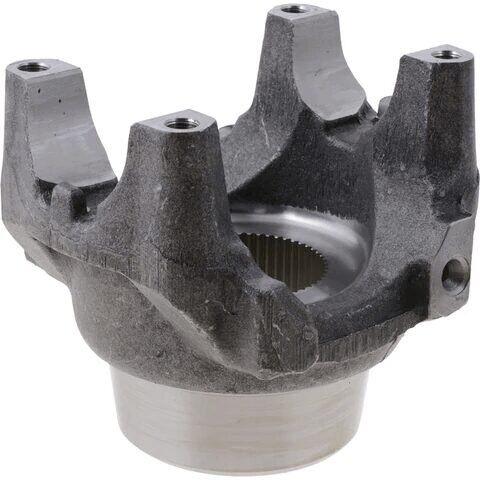

250-4-271-1 – End Yoke – SPL250 Series – 2.794″ Splines Dia – 54 Spline
$251.26
1 in stock
10
People watching this product now!
Description
250-4-271-1 End Yoke — SPL250 series, 2.794 x 54 spline | 0.000″” hub dia | 5.703″ CJ-to-end | 2.750″ bore. Professional replacement, spline-specific fit. Count splines before ordering.
Full Description
The 250-4-271-1 end yoke connects the driveshaft end to the axle or transfer case output shaft via a splined bore. Spline count and diameter are the critical dimensions — a mismatch here means the yoke either won't engage the shaft or will engage loosely and spin out under load. The 250-4-271-1 end yoke is machined to one specific spline specification for SPL250 series applications.
250-4-271-1 End Yoke — Spline Specs & SPL250 Series Fitment
The 250-4-271-1 end yoke specs: 2.794 x 54 spline | 0.000"" hub dia | 5.703" CJ-to-end | 2.750" bore. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface. Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 250-4-271-1 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.Key Features
- Series: SPL250 — application-specific
- Spline: 2.794 x 54 — must match output shaft exactly
- Hub dia: 0.000"" — outer dimension, verify clearance
- CJ-to-end: 5.703" — positions u-joint relative to axle flange
- Bore: 2.750"
- Style: BS
- Brand: UDS
Specifications
- SKU: 250-4-271-1
- Brand: UDS
- Series: SPL250
- Spline Dia: 2.794
- Spline Count: 54
- Hub Dia: 0.000""
- CJ to End: 5.703"
- Through Hole: 2.750"
- Style: BS
Additional information
| Cj to end | 5.703 |
|---|---|
| Hub dia | 0.000″ |
| Partn number | 250-4-271-1 |
| Series | SPL250 |
| Splines count | 54 |
| Splines dia | 2.794 |
| Style | BS |
| Through hole | 2.750″ |
