2380-20 – Center Support Bearing – Toyota Application – 1.181″ ID – 1.000″ Center Bearing To Base
$73.31
10 in stock
Description

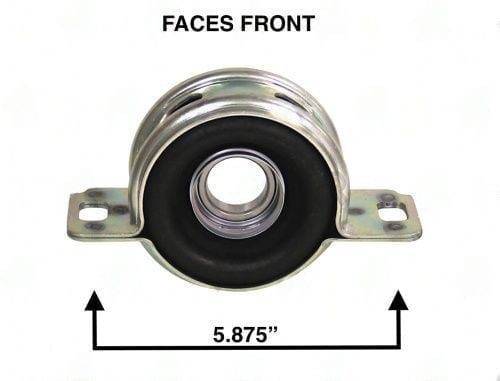

2380-20 center support bearing, Toyota, 1.181″ bore, 1.000″ center-to-base height, 5.875″ center-to-center mount holes.
Full Description
Q: How does 2380-20 differ from the flush-mount 2380-90, 2380-80, and 2380-50 that also show 5.875" span?
A: The 2380-20 has a 1.000" center-to-base height, while the others are flush (0"). Despite the same bore and span, these parts are not interchangeable -- the 1.000" height difference changes the driveshaft angle at the center hanger by the same amount.
Q: Which Toyota model uses the 2380-20?
A: Toyota trucks and SUVs that use the 5.875" crossmember span with a 1.000" raised carrier. Confirm by measuring the removed unit. The 1.000" center-to-base is a distinctive dimension that narrows the fitment to specific model years.
Q: Can I use this on a lifted Toyota where the suspension geometry has changed?
A: Only if the driveline was re-angled with a transfer case drop or CV conversion to restore factory shaft geometry. See the center support bearing catalog and consult your lift kit manufacturer's driveline specs.
Additional information
| Application | TOYOTA |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 1.000 |
| Ctr to ctr of mount holes | 5.875 |
| Partn number | 2380-20 |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Center Support Bearing (323) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.181 Center bearing to base 2.375 Ctr to ctr of mount holes 0 Notes 620 Pickup (73-79) Partn number 1280-10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Juke 11-17 Bearing id 1.181 Center bearing to base 570 Ctr to ctr of mount holes 7.125 Notes Bolt heads opposite side of spacers Partn number 1280-15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.181 Center bearing to base 2.375 Ctr to ctr of mount holes 9.375 Notes Pickup 4X4 (79-88) Partn number 1280-20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan, Infiniti Bearing id 1.181 Center bearing to base 2.170 Ctr to ctr of mount holes 6.000 Notes Double metal rings surrounding the rubber and bearing. Comes with nut and washer/spacer Partn number 1280-30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.378 Center bearing to base 2.180 Ctr to ctr of mount holes 0 Notes Infiniti/ Nissan. Like 1280-30 but with larger bearing ID / Bracket not included. comes with new nut washer/spacer Partn number 1280-35 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.181 Center bearing to base 2.500 Ctr to ctr of mount holes 6.000 Notes Nissan / Infiniti / Frontier 4X4 (98-03) Hardbody 4X4 (86-97) Pathfinder 4X4 (87-03) Xterra 4X4 (00-03) QX4 4X4 (00-03) Partn number 1280-40 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.181 Center bearing to base 2.125 Ctr to ctr of mount holes 5.875 Notes 300ZX (90-96) Partn number 1280-50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Infiniti Bearing id 1.181 Center bearing to base 1.125 Ctr to ctr of mount holes 6.000 Notes Q45 (90-96) Partn number 1280-70 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application INFINITI Q50, Q60 Bearing id 1.181 Ctr to ctr of mount holes 6.000 Notes 3 mm spacer Partn number 1280-74 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application INFINITI Q50, Q60, Q70, M37, M56 Bearing id 1.181 Center bearing to base 197 Ctr to ctr of mount holes 6.000 Notes 11 mm spacer Partn number 1280-75 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
