2380-25 – Center Support Bearing – Toyota Application – 1.181″ ID – 2.750″ Center Bearing To Base
$105.36
2 in stock
Description

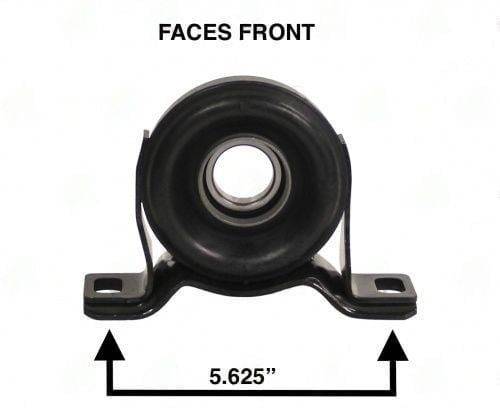

2380-25 center support bearing, Toyota 4WD/RWD, 1.181″ bore, 2.750″ center-to-base height, 5.625″ mount hole spacing.
Full Description
The 2380-25 is the tallest unit in the Toyota 2380 center support bearing series at 2.750" center-to-base. This height is only exceeded by the 2380-60 (2.500", narrower span). The 2.750" carrier places the propshaft centerline significantly above the bracket base pad, which sets a specific driveshaft geometry for Toyota models where the tunnel crossmember is mounted low but the shaft runs near the top of the tunnel.
- Part: 2380-25 | Application: Toyota (4WD/RWD)
- Bore: 1.181" | Center-to-base: 2.750" | Mount span: 5.625"
- Tallest profile in the narrow-span Toyota 2380 group
- Sealed bearing, rubber isolator bonded to housing
Tip: Toyota 4Runner and Tacoma second-gen (1996-2002) are known to crack the center carrier bracket weld from off-road impact loads. If the vehicle has been used off-road, inspect the bracket for hairline cracks before attributing noise/vibration to the bearing alone. A cracked bracket will destroy the new bearing within weeks.
Additional information
| Application | TOYOTA |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.750 |
| Ctr to ctr of mount holes | 5.625 |
| Notes | Supra (90-93) |
| Partn number | 2380-25 |
