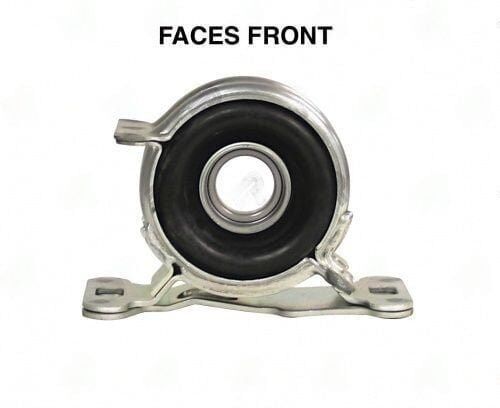

2380-15 – Center Support Bearing – Toyota Application – 1.181″ ID – 2.500″ Center Bearing To Base
$105.19
10 in stock
Description
2380-15 center support bearing, Toyota 4WD, 1.181″ bore, 2.500″ center-to-base height, 5.625″ mount hole spacing.
Full Description
2380-15 -- Toyota: Bore 1.181" — Center-to-base 2.500" — Mount span 5.625" C-to-C
The 2380-15 pairs a 2.500" center-to-base with a 5.625" mount span -- the same narrow span used by the 2380-25 (2.750" height), but with a 0.250" shorter carrier. These two units fit Toyota models where the tunnel crossmember is narrow (5.625" span) but the propshaft runs at different heights across model years. The 2.500" vs. 2.750" difference between 2380-15 and 2380-25 is not a rounding convention -- it corresponds to specific Toyota production changes between model years.
For Toyota 4WD vehicles operated in mountainous or snow-belt environments, replace the center carrier as a precautionary measure at each timing belt or major service interval, even if no vibration has developed. The rubber isolator degrades slowly and does not always give audible warning before the bearing fails. Browse all Toyota 4WD fitments in the center support bearing catalog.
Additional information
| Application | TOYOTA |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.500 |
| Ctr to ctr of mount holes | 5.625 |
| Notes | Supra (88-92) |
| Partn number | 2380-15 |
