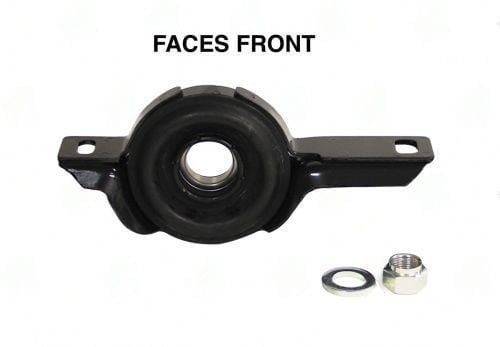

2380-12 – Center Support Bearing – Toyota Application – 1.181″ ID – 375″ Center Bearing To Base
$98.11
10 in stock
Description
2380-12 rear center support bearing for Toyota 3-piece shaft — 1.181" ID, 0.375" center-to-base, 8.000" mount hole spacing.
Full Description
| SKU | 2380-12 |
|---|---|
| Application | Toyota (rear on 3-piece shaft) |
| Bearing ID | 1.181" |
| Center-to-Base | 0.375" |
| Ctr-to-Ctr Mount Holes | 8.000" |
| Position | Rear carrier |
- Bore must slip over the stub shaft without forcing -- confirm 1.181" ID matches your shaft OD before ordering
- Center-to-base sets driveshaft operating angle; a different height shifts phasing even if bore ID is correct
- 8.000" mount spread is specific to this rear position -- compare to front (2380-11, 7.125") before ordering
- Rear carrier sees higher angular load than the front on a 3-piece shaft -- inspect rubber isolator for cracking during replacement
The 2380-12 is the rear center support bearing on Toyota 3-piece driveshaft assemblies. The 8.000" mount spread distinguishes this rear position from the front (2380-11 at 7.125"). All three dimensions -- bore ID, center-to-base, and mount spread -- must match your application. Replacing only the rear carrier without inspecting the front (2380-11) on high-mileage shafts is a common oversight.
Additional information
| Application | TOYOTA |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 375 |
| Ctr to ctr of mount holes | 8.000 |
| Notes | Rear bearing on 3 piece shaft, |
| Partn number | 2380-12 |
