212134-1X Drive Shaft Center Bearing 1.771 X 2.250 X 7.622 SPL100
$57.99
10 in stock
12
People watching this product now!
Description
212134-1X center support bearing for SPL100. Bearing ID 1.771″, mount holes ” C-to-C. Verify stub shaft OD and bracket spacing.
Full Description

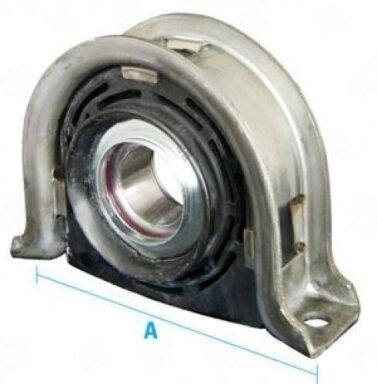

212134-1X Center Support Bearing - SPL100
The 212134-1X is a center support bearing manufactured by UDS. In a two-piece driveshaft layout, the center support bearing carries the midship stub shaft at the point where the front and rear driveshaft sections meet. The bearing presses into a rubber-isolated housing that bolts to the vehicle frame or crossmember. This bearing is catalogued for SPL100 applications.
The bearing inner bore (ID) is 1.771 inches — this must match the outer diameter of the midship stub shaft exactly. Even a small mismatch causes either interference fit problems or excessive play. The centerline-to-base dimension is 2.689 inches, measured from the bearing centerline to the bottom of the mounting bracket; this determines the working angle of the front driveshaft section.
Specifications
- Part Number: 212134-1X
- Brand: UDS
- Application: SPL100
- Bearing id: 1.771
- Center bearing to base: 2.689
- Ctr to ctr of mount holes: 7.622
- Bracket wid: 2.250
Fitment & Installation Notes
Before ordering the 212134-1X, measure the midship stub shaft OD and confirm it matches the 1.771-inch bore. Also verify the frame bracket hole spacing matches the -inch center-to-center dimension. The rubber isolator in the housing should be replaced if cracked or oil-contaminated, as a degraded isolator transmits driveshaft vibration directly to the chassis.
View the full range of Center Support Bearings for two-piece driveshaft applications.
Additional information
| Application | SPL100 |
|---|---|
| Bearing id | 1.771 |
| Center bearing to base | 2.689 |
| Ctr to ctr of mount holes | 7.622 |
| Partn number | 212134-1X |
| Bracket wid | 2.250 |
