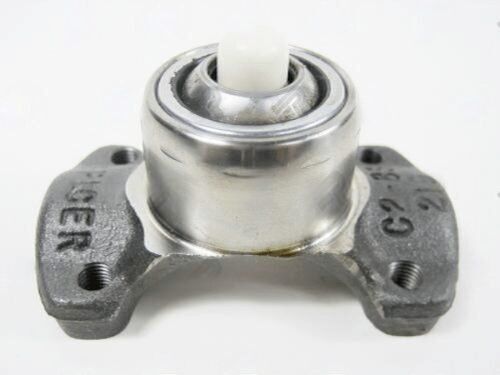

211355X – Cv Link Yokes – 1310 Series – Bolt Hole Dia .312-24 – Notes SHORT SOCKET TYPE
$40.27
10 in stock
19 People watching this product now!
Description
211355X Cv Link Yoke — 1310 series | 500 ball stud | 1.531″ CU-to-end. Proven CV link yoke, verify ball stud dia.
Full Description
The 211355X CV link yoke is the connecting yoke in a constant velocity driveshaft link configuration for 1310 series applications. It bridges the ball stud centering mechanism and the u-joint cross, allowing the driveshaft to operate at angle without velocity variation. Ball stud diameter and bolt hole spec are both series-specific.
211355X Cv Link Yoke — 1310 Series Ball Stud & Dimensions
The 211355X CV link yoke specs: 1310 series | 500 ball stud | 1.531" CU-to-end. SHORT SOCKET TYPE. Ball stud diameter must match the CV head socket exactly — a loose ball stud allows the CV head to walk at high angles. Verify ball stud diameter and series against your CV assembly before ordering the 211355X CV link yoke. CV link yokes are not interchangeable between series.Key Features
- Series: 1310
- Ball stud dia: 500
- Bolt hole dia: .312-24
- CU-to-end: 1.531"
- Note: SHORT SOCKET TYPE
Specifications
- SKU: 211355X
- Brand: UDS
- Series: 1310
- Ball Stud Dia: 500
- Bolt Hole Dia: .312-24
- CU to End: 1.531"
- Notes: SHORT SOCKET TYPE
Additional information
| Partn number | 211355X |
|---|---|
| Series | 1310 |
| Bolt hole dia | .312-24 |
| Notes | SHORT SOCKET TYPE |
| Ball stud dia | 500 |
| Center u joint to end | 1.531 |
