2602-361 – Flange Yokes – OEM Series – Bolt Circle Dia 3.543″ – Bolt Hole Dia 0.410
$53.74
1 in stock
12 People watching this product now!
Description
2602-361 UDS OEM flange yoke. 4-hole, 3.543″ bolt circle, 2.362,” pilot, 1.575″ CJ-to-face. Verify bolt circle and pilot before ordering.
Full Description

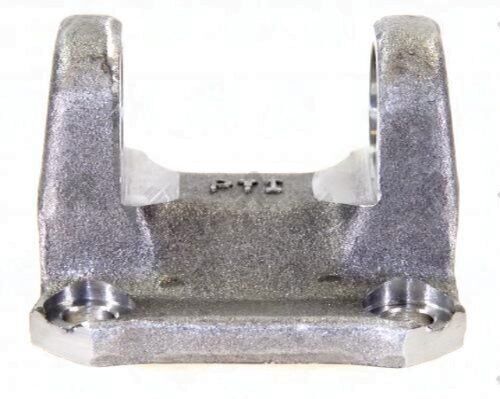

2602-361 UDS OEM Flange Yoke
The 2602-361 is a OEM series flange yoke manufactured by UDS. It bolts to a companion flange on the transmission, transfer case, or differential output using a 4-bolt pattern on a 3.543-inch bolt circle. The 2.362,-inch pilot diameter registers the yoke concentrically against the companion flange to minimize runout.
The 4 bolt holes are 0.410-inch diameter on the 3.543-inch bolt circle. The center-U-joint-to-flange-face dimension is 1.575 inches. This OEM series yoke accepts a OEM U-joint in the yoke ears — the ear bore is machined specifically for the OEM cap diameter. The OEM series is designed for the specified application range.
Specifications
- Part Number: 2602-361
- Brand: UDS
- Series: OEM
- Bolt circle dia: 3.543
- Bolt hole dia: 0.410
- Cj to flat: 1.575
- Pilot dia: 2.362, M
- Bolt Holes: 4
Fitment & Installation Notes
Before ordering the 2602-361, measure the bolt circle diameter and pilot diameter on the companion flange. The bolt circle (3.543") and pilot (2.362,") must match exactly. A OEM U-joint is required — do not install a different-series joint in these ears.
Browse the complete Flange Yokes catalog including circular and rectangular bolt patterns across OEM and adjacent series.
Additional information
| Bolt circle dia | 3.543 |
|---|---|
| Bolt hole dia | 0.410 |
| Cj to flat | 1.575 |
| Partn number | 2602-361 |
| Pilot dia | 2.362, M |
| Series | OEM |
| Bolt Holes | 4 |
