1502-29 – Flange Yokes – OEM Series – Bolt Circle Dia 2.946″ – Pilot Dia 1.772, M
$45.14
2 in stock
19 People watching this product now!
Description
1502-29 UDS OEM flange yoke. 4-hole, 2.946″ bolt circle, 1.772,” pilot, 1.750″ CJ-to-face. Verify bolt circle and pilot before ordering.
Full Description

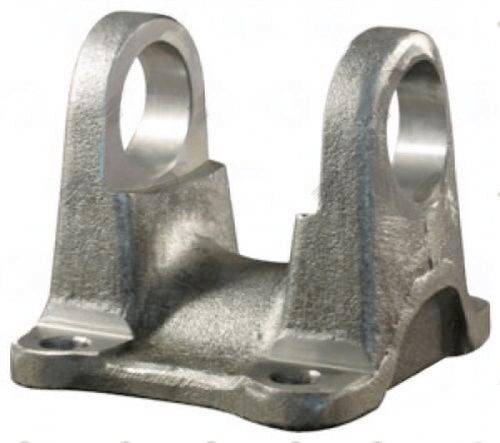

1502-29 UDS OEM Flange Yoke
The 1502-29 is a OEM series flange yoke manufactured by UDS. It bolts to a companion flange on the transmission, transfer case, or differential output using a 4-bolt pattern on a 2.946-inch bolt circle. The 1.772,-inch pilot diameter registers the yoke concentrically against the companion flange to minimize runout.
The 4 bolt holes are 0.325-inch diameter on the 2.946-inch bolt circle. The center-U-joint-to-flange-face dimension is 1.750 inches. This OEM series yoke accepts a OEM U-joint in the yoke ears — the ear bore is machined specifically for the OEM cap diameter. The OEM series is designed for the specified application range.
Specifications
- Part Number: 1502-29
- Brand: UDS
- Series: OEM
- Bolt circle dia: 2.946
- Bolt hole dia: 0.325
- Cj to flat: 1.750
- Pilot dia: 1.772, M
- Bolt Holes: 4
Fitment & Installation Notes
Before ordering the 1502-29, measure the bolt circle diameter and pilot diameter on the companion flange. The bolt circle (2.946") and pilot (1.772,") must match exactly. A OEM U-joint is required — do not install a different-series joint in these ears.
Browse the complete Flange Yokes catalog including circular and rectangular bolt patterns across OEM and adjacent series.
Additional information
| Bolt circle dia | 2.946 |
|---|---|
| Bolt hole dia | 0.325 |
| Cj to flat | 1.750 |
| Partn number | 1502-29 |
| Pilot dia | 1.772, M |
| Series | OEM |
| Bolt Holes | 4 |
