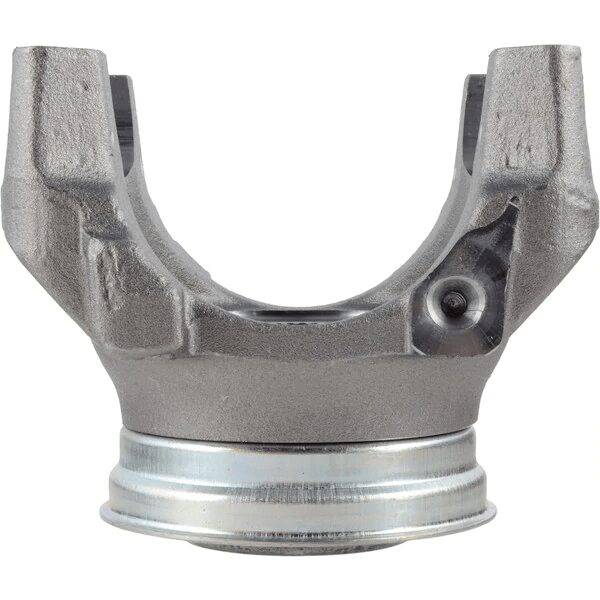

170-4-361-1 – End Yoke – 41 Splines – 2.143″ splines dia – 2.938″ Hub Dia
$317.46
1 in stock
17 People watching this product now!
Description
170-4-361-1 End Yoke — SPL170 series, 2.143 x 41 spline | 2.938″ hub dia | 5.320″” CJ-to-end | 2.500″ bore. Proven replacement, spline-specific fit. Count splines before ordering.
Full Description
The 170-4-361-1 end yoke connects the driveshaft end to the axle or transfer case output shaft via a splined bore. Spline count and diameter are the critical dimensions — a mismatch here means the yoke either won't engage the shaft or will engage loosely and spin out under load. The 170-4-361-1 end yoke is machined to one specific spline specification for SPL170 series applications.
170-4-361-1 End Yoke — Spline Specs & SPL170 Series Fitment
The 170-4-361-1 end yoke specs: 2.143 x 41 spline | 2.938" hub dia | 5.320"" CJ-to-end | 2.500" bore. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface.
Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 170-4-361-1 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.
Key Features
- Series: SPL170 — application-specific
- Spline: 2.143 x 41 — must match output shaft exactly
- Hub dia: 2.938" — outer dimension, verify clearance
- CJ-to-end: 5.320"" — positions u-joint relative to axle flange
- Bore: 2.500"
- Style: BS
- Brand: UDS
Specifications
- SKU: 170-4-361-1
- Brand: UDS
- Series: SPL170
- Spline Dia: 2.143
- Spline Count: 41
- Hub Dia: 2.938"
- CJ to End: 5.320""
- Through Hole: 2.500"
- Style: BS
Additional information
| Cj to end | 5.320″ |
|---|---|
| Hub dia | 2.938 |
| Partn number | 170-4-361-1 |
| Series | SPL170 |
| Splines count | 41 |
| Splines dia | 2.143 |
| Style | BS |
| Through hole | 2.500″ |
