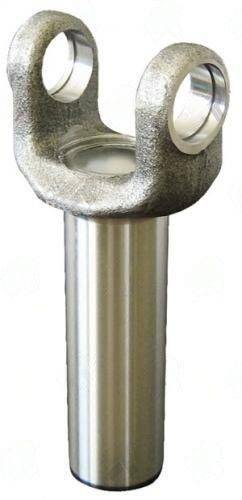

1403-25 – Transmission Yokes – 1100 Series – 24/25 X 1.109 Splines – 1.375″ Hub Dia
$75.83
12 People watching this product now!
Description
1403-25 transmission yoke, 1100 series. 24/25 X 1.109 spline | 1.375″ hub | 5.500″ CJ-to-end. Splined tailshaft fit — verify count and series.
Full Description
The 1403-25 transmission yoke is splined to the gearbox output shaft. It's the fixed end of the driveshaft's front connection -- and it carries the u-joint cross.
1403-25 Transmission Yoke -- 1100 Series Specs
The 1100 series is the standard for light PTO and agricultural drive applications.
Specs on the 1403-25 transmission yoke: 24/25 X 1.109 spline | 1.375" hub | 5.500" CJ-to-end. Compatible with: Capri. Cross-reference spline count and shaft diameter -- not all 1100 series transmissions use the same output spline.
After a transmission rebuild or swap, the tailshaft spline count can change. Count the splines on your output shaft before ordering.
Key Features
- Series: 1100 -- light PTO and agricultural drive applications
- Spline: 24/25 X 1.109 -- must match transmission tailshaft exactly
- Hub dia: 1.375" -- determines spline engagement depth on tailshaft
- CJ-to-end: 5.500" -- factors into driveshaft working length
- Compatible with: Capri
Specifications
- SKU: 1403-25
- Brand: UDS
- Series: 1100
- Spline Count x Dia: 24/25 X 1.109
- Hub Dia: 1.375"
- CJ to End: 5.500"
- Notes: Capri
Additional information
| Center u joint to end | 5.500 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.375 |
| Notes | Capri |
| Partn number | 1403-25 |
| Series | 1100 |
| Splines count dia | 24/25 X 1.109 |
