Brand:
1326-20-S Weld Tube Yoke 1510 | 1351-20 Ser’ – Fits: 2.560 SOLID BUTT Tube Butt Dia: 2.345 Inch Toyota
$40.07
27 in stock
10 People watching this product now!
Description

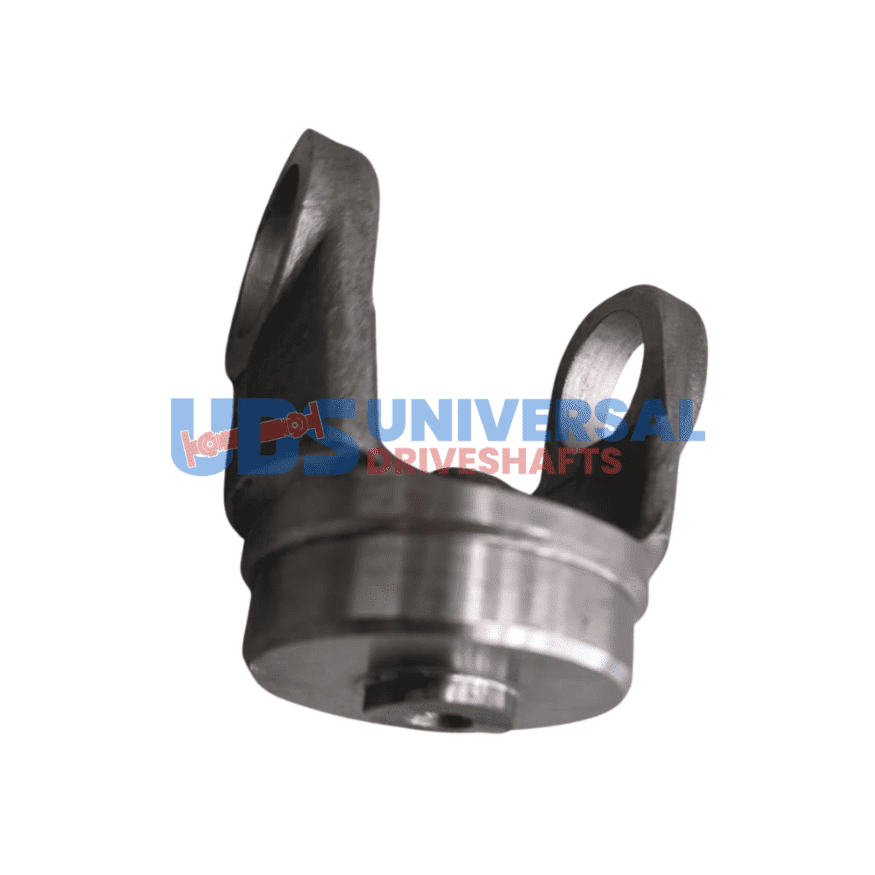

Weld yoke 1326-20-S, 1351-20. fits 2.560×0.065 tube | 2.345″ butt dia | 2.000″” center-to-weld. SOLID BUTT – CAN BE TURN DOWN TO 2.000 X 0.125. Tube OD must match butt diameter.
Full Description
If you're building or rebuilding a 1351-20 series driveshaft, the 1326-20-S weld yoke is the tube-end connection. Butt diameter matches tube OD exactly.
1326-20-S Weld Yoke -- Dimensions & Fitment
1326-20-S weld yoke -- fits 2.560x0.065 tube | 2.345" butt dia | 2.000"" center-to-weld. Additional: SOLID BUTT - CAN BE TURN DOWN TO 2.000 X 0.125.
Steel DOM-compatible -- standard weld prep, full-penetration weld recommended. Tack in place before final weld -- confirm runout is within 0.005" before committing to full weld.
Key Features
- Series: 1351-20 -- application-specific
- Tube fit: 2.560x0.065 -- butt diameter machined to this tube OD only
- Butt diameter: 2.345" -- slides over tube OD for weld prep
- Center-to-weld: 2.000"" -- factors into overall driveshaft length calculation
- Steel construction -- standard weld-compatible material
- Note: SOLID BUTT - CAN BE TURN DOWN TO 2.000 X 0.125
Specifications
- SKU: 1326-20-S
- Brand: UDS
- Series: 1351-20
- Material: Steel
- Tube Dia x Wall: 2.560x0.065
- Butt Dia: 2.345"
- Center UJ to Weld: 2.000""
- Notes: SOLID BUTT - CAN BE TURN DOWN TO 2.000 X 0.125
Additional information
| Butt dia | 2.345 |
|---|---|
| Center u j to weld | 2.000" |
| Material | STEEL |
| Notes | SOLID BUTT – CAN BE TURN DOWN TO 2.000 X 0.125 ,TOYOTA |
| Partn number | 1326-20 |
| Series | 1351-20 |
| Tube dia wall | 2.560×0.065 |
| Brand | UDS |
