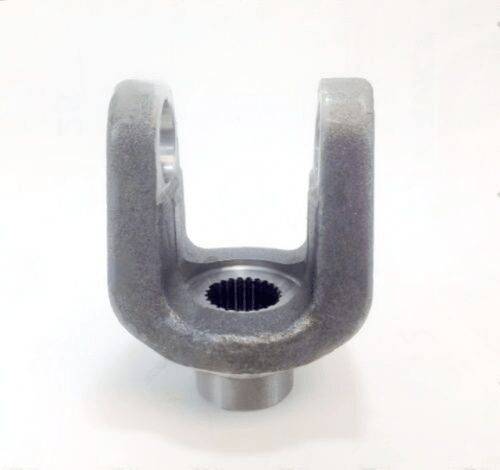

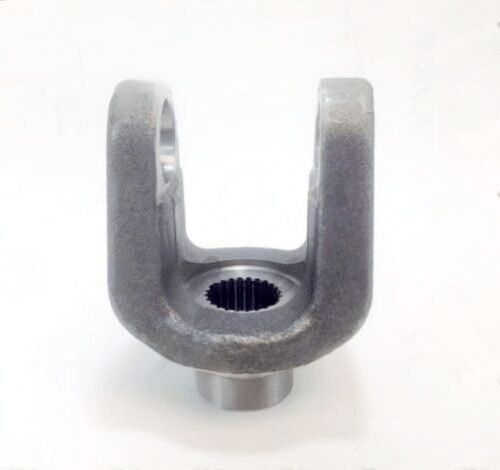

1204-241U – End Yoke – 1251 Series – 995″ Splines dia – 1.342″ Hub Dia
$113.68
2 in stock
12 People watching this product now!
Description
1251 series 1204-241U end yoke. 995 x 22/24 spline | 1.342″ hub dia | 2.900″” CJ-to-end | 1.300″ bore. SR retention. Direct swap for axle or T-case output.
Full Description
Spline count and diameter aren't suggestions -- they're the spec. The 1204-241U end yoke is bored and splined to one shaft dimension. Match it exactly.
1204-241U End Yoke -- 1251 Series Spline & Fitment
Dimensions on the 1204-241U end yoke: 995 x 22/24 spline | 1.342" hub dia | 2.900"" CJ-to-end | 1.300" bore. USED ON 2 PCS SHAFT FOR SUBARU TO REPLACE THE CENTER CV SECTION. Verify spline count and diameter against your axle or transfer case output shaft.
The hub diameter and CJ-to-end measurement determine clearance and working angle -- both matter on lifted vehicles.
Key Features
- Series: 1251 -- application-specific drivetrain
- Spline: 995 x 22/24 -- must match axle/T-case shaft exactly
- Hub dia: 1.342" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 2.900"" -- affects driveshaft working length and angle
- Bore: 1.300" -- confirm against shaft OD
- Retention: SR -- verify against your yoke configuration
- Note: USED ON 2 PCS SHAFT FOR SUBARU TO REPLACE THE CENTER CV SECTION
Specifications
- SKU: 1204-241U
- Brand: UDS
- Series: 1251
- Spline Dia: 995
- Spline Count: 22/24
- Hub Dia: 1.342"
- CJ to End: 2.900""
- Through Hole: 1.300"
- Style: SR
- Notes: USED ON 2 PCS SHAFT FOR SUBARU TO REPLACE THE CENTER CV SECTION
Additional information
| Cj to end | 2.900" |
|---|---|
| Hub dia | 1.342 |
| Notes | USED ON 2 PCS SHAFT FOR SUBARU TO REPLACE THE CENTER CV SECTION |
| Partn number | 1204-241U |
| Series | 1251 |
| Splines count | 22/24 |
| Splines dia | 995 |
| Style | SR |
| Through hole | 1.300" |
