110679 Weld Yoke 1310 Series, Fits 2.500 x 0.095 Tube – Centerline to Weld 1.688
$34.73
30 in stock
19 People watching this product now!
Description
110679 Weld Yoke — Steel, 1310 series, fits 2.500X0.095 tube | 2.321″ butt dia | 1.688″ center-to-weld. Premium weld-on replacement. Match tube OD before ordering.
Full Description

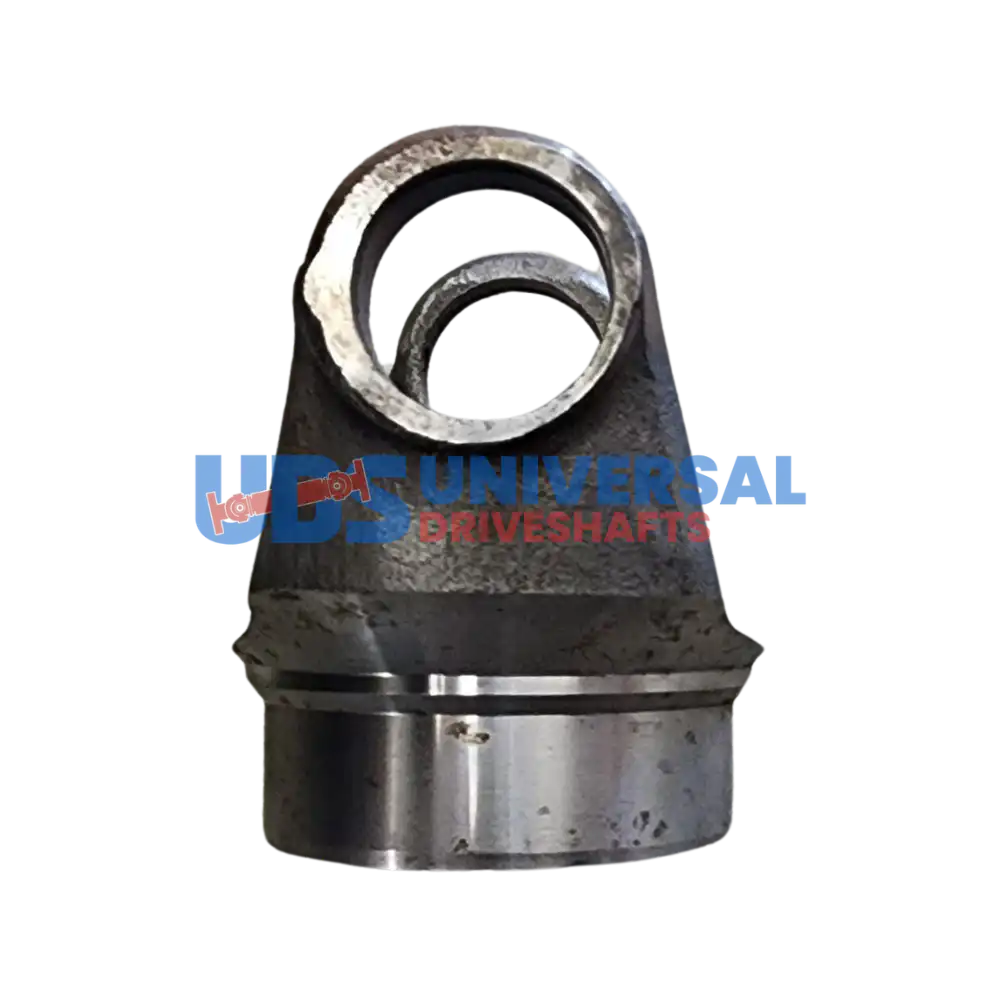

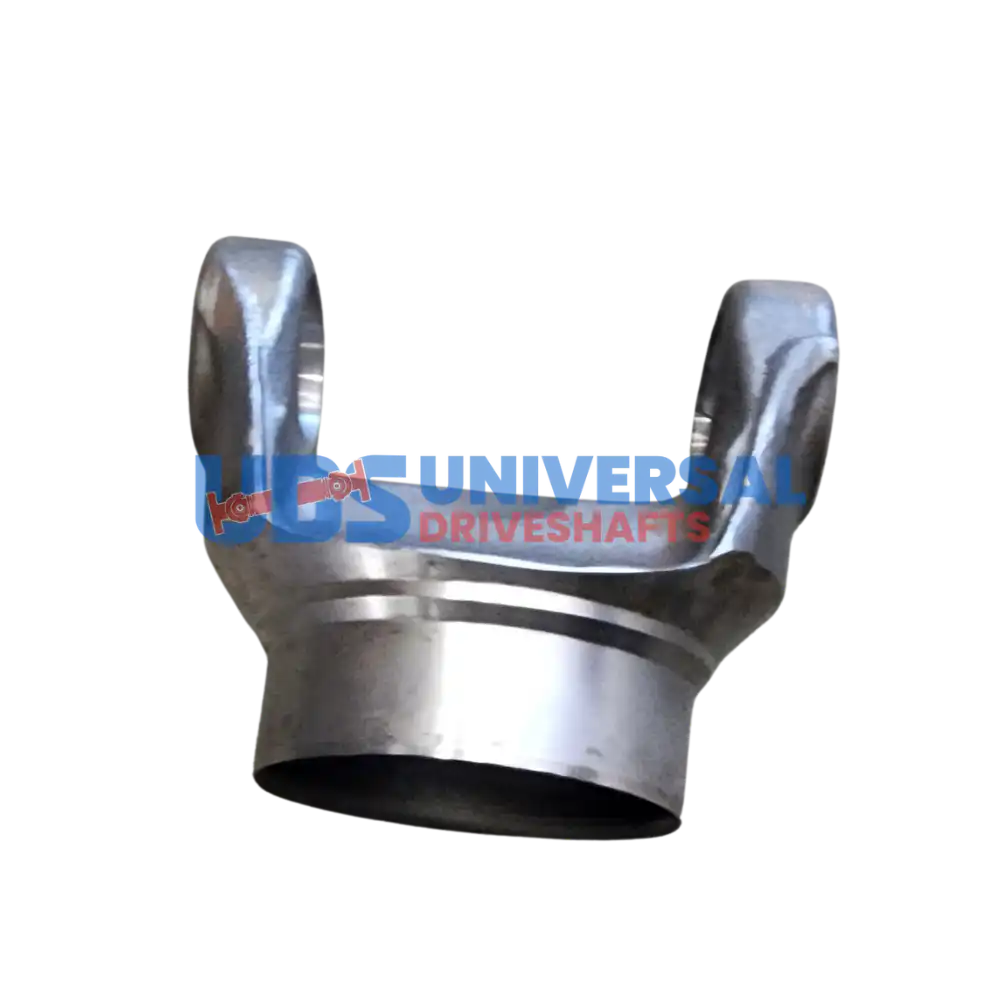

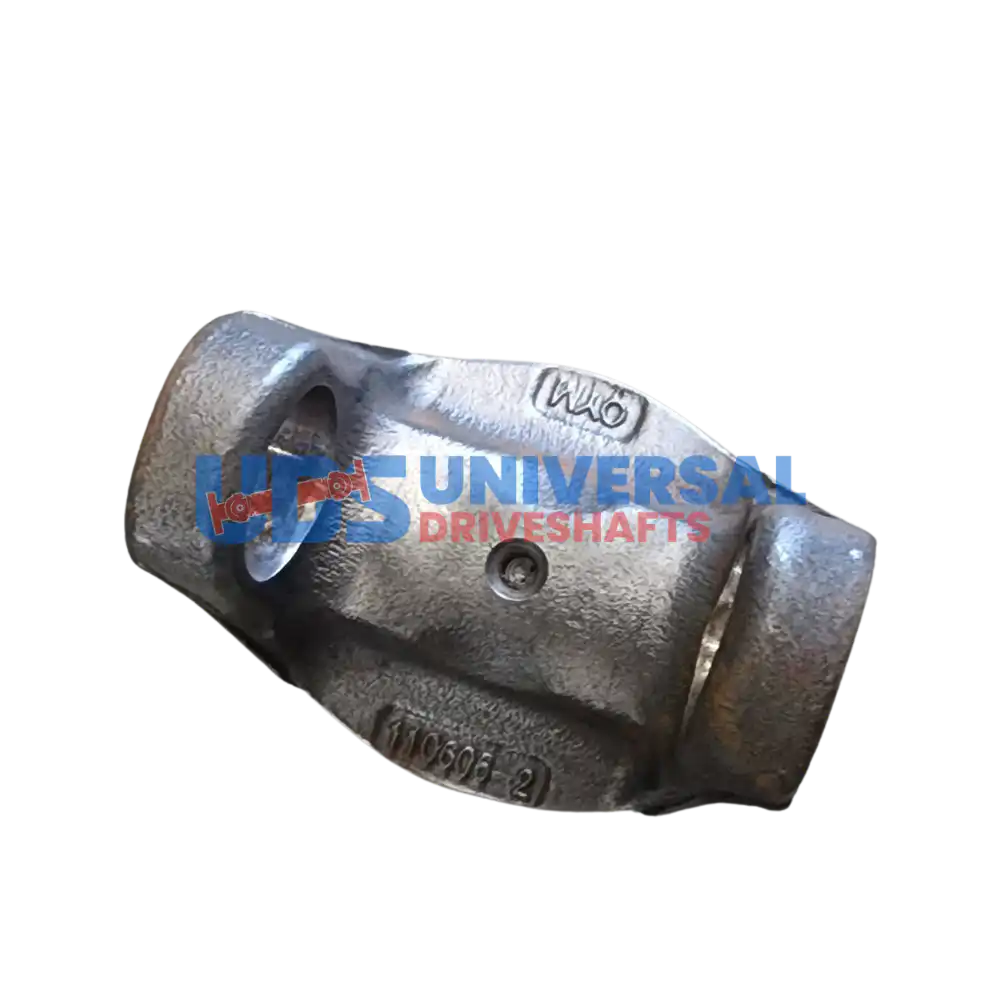

The 110679 weld yoke is a steel weld-on yoke for 1310 series driveshaft applications. It attaches permanently to the tube via weld and carries the u-joint cross at the outboard end of the shaft. Center-to-weld dimension and butt diameter are the two numbers that matter most here.
110679 Weld Yoke — Tube Fit & Steel Specs
The 1310 series covers light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500. The 110679 weld yoke specs: fits 2.500X0.095 tube | 2.321" butt dia | 1.688" center-to-weld. Butt Diameter 58.95 mm. Steel construction — DOM-compatible, full-penetration weld ready, standard for high-torque driveshaft applications. Center-to-weld dimension is critical for total shaft length calculations — it's the distance consumed by this yoke on that end of the tube.
Measure your tube OD before cutting and welding the 110679 weld yoke. Tack it in place first, check runout is within 0.005" before committing to full weld. A slight off-angle tack that gets welded solid will show up as vibration at 50+ mph that no balancer can fully correct.
Key Features
- Series: 1310 — light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Tube fit: 2.500X0.095 — butt diameter is machined specifically for this OD
- Butt dia: 2.321" — must match tube OD precisely for a centered weld joint
- Center-to-weld: 1.688" — factors into total shaft length calculation
- Steel — DOM-compatible, full-penetration weld, standard drivetrain spec
- Brand: UDS
- Note: Butt Diameter 58.95 mm
Specifications
- SKU: 110679
- Brand: UDS
- Series: 1310
- Material: Steel
- Tube Fit: 2.500X0.095
- Butt Dia: 2.321"
- Center to Weld: 1.688"
- Notes: Butt Diameter 58.95 mm
Additional information
| Butt dia | 2.321 |
|---|---|
| Center u j to weld | 1.688 |
| Material | STEEL |
| Partn number | 110679 |
| Series | 1310 |
| Tube dia wall | 2.500X0.095 |
| Brand | UDS |
| Notes | Butt Diameter 58.95 mm |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weld Yokes (191) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 3.810" Center u j to weld 2.969 Material STEEL Partn number 100-28-17 Series SPL90/100 Tube dia wall 4.000X0.095 Brand SPICER | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 1.571 Center u j to weld 1.625 Material STEEL Notes INFINITI FRONT SHAFT Partn number 1126-1711 Series 9951-22 Tube dia wall 1.750X0.095 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 1.667 Center u j to weld 1.750" Material STEEL Partn number 1226-17 Series 1251 Tube dia wall 1.775X.0.65 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 1.844 Center u j to weld 1.750" Material STEEL Notes FOREIGN Partn number 1226-20 Series 1251 Tube dia wall 2.000X0.083 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 1.875 Center u j to weld 1.750" Material STEEL Notes FOREIGN Partn number 1226-201 Series 1251 Tube dia wall 2.000x0.065 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.140" Center u j to weld 1.750" Material STEEL Notes FOREIGN Partn number 1226-22 Series 1251 Tube dia wall 2.370X0.065 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.375 Center u j to weld 1.750" Material STEEL Notes FOREIGN Partn number 1226-25 Series 1251 Tube dia wall 2.500X0.065 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.375 Center u j to weld 1.375 Material STEEL Notes FOREIGN - HONDA Partn number 1226-251 Series 1251-22 Tube dia wall 2.500X0.065 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.400" Center u j to weld 1.750" Material STEEL Notes FOREIGN Partn number 1226-26 Series 1251 Tube dia wall 2.550X0.080 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

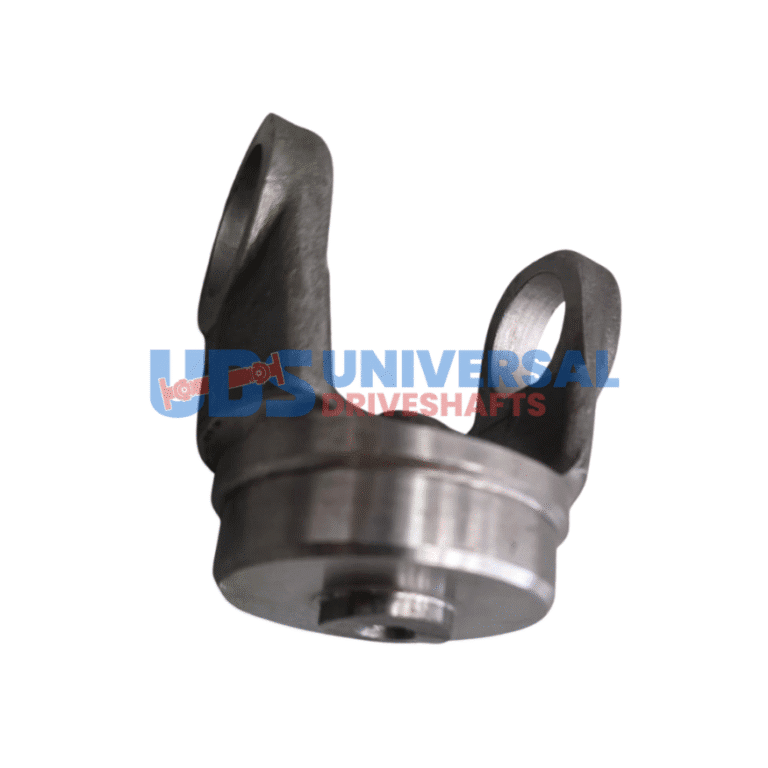

| | Butt dia 2.345 Center u j to weld 2.000" Material STEEL Notes SOLID BUTT - CAN BE TURN DOWN TO 2.000 X 0.125 ⋅ TOYOTA Partn number 1326-20 Series 1351-20 Tube dia wall 2.560x0.065 Brand UDS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
