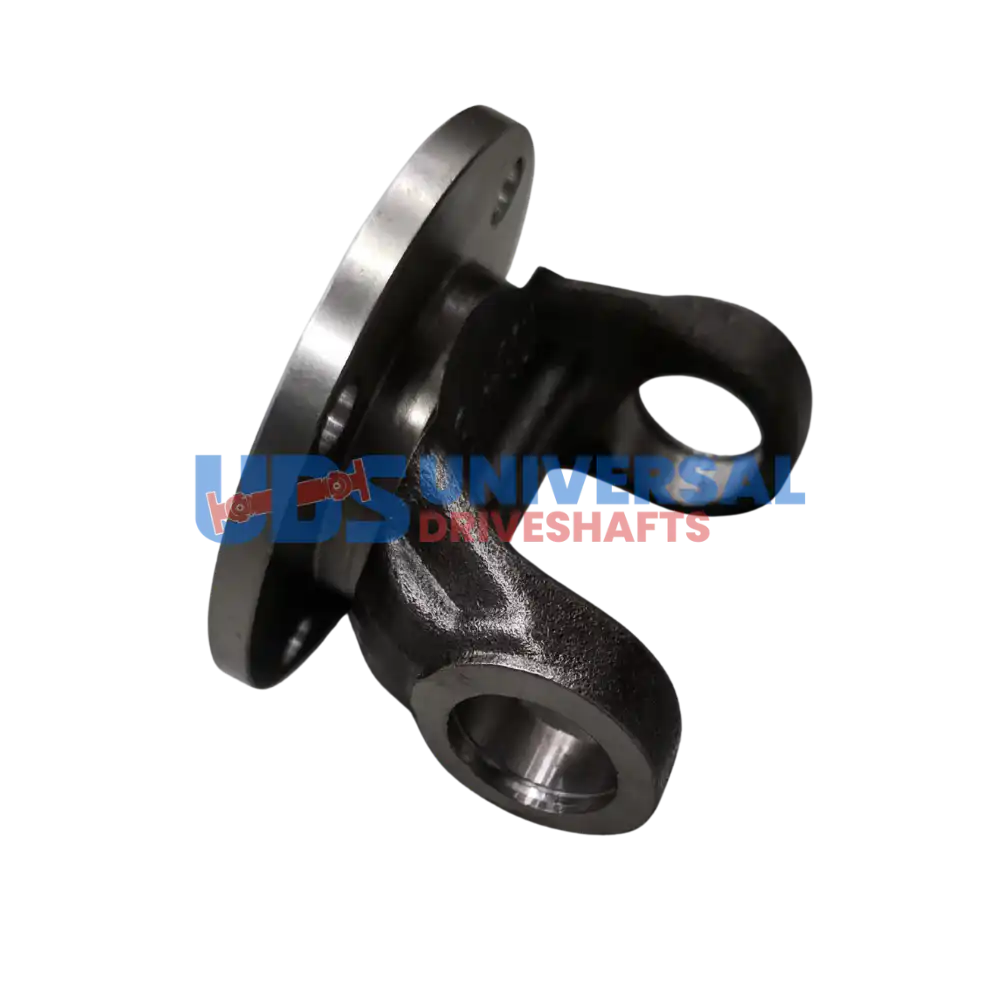

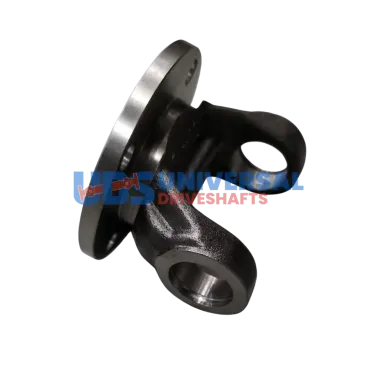

3102-312S Flange Yoke 1310 , Pilot: 2.375 Bolt , Circle Diameter: 3.125 , SQUARE PATTERN 2.200 X 2.200
$52.92
6 in stock
16
People watching this product now!
Description
3102-312S 1310 series flange yoke, square 2.200 x 2.200 in bolt pattern. 3.125 in bolt circle, 0.410 in holes, 4 bolts, 2.375 in male pilot. Verify bolt pattern and pilot before ordering.
Full Description
3102-312S 1310 Series Flange Yoke — Square Pattern 2.200 x 2.200
The 3102-312S is a 1310 series flange yoke with a 4-bolt square hole pattern measuring 2.200 x 2.200 inches. The bolt circle diameter is 3.125 inches with 0.410-inch bolt holes. The pilot diameter is 2.375 inches male (M), and the centerline-to-flat dimension is 2.000 inches. This square bolt pattern differentiates it from circular pattern flanges and is found on specific transmission or axle outputs.
Specifications
- Part Number: 3102-312S
- Series: 1310
- Bolt Circle Diameter: 3.125 in
- Bolt Hole Diameter: 0.410 in
- Bolt Holes: 4
- Pilot Diameter: 2.375 in (male)
- Center U-Joint to Flat: 2.000 in
- Bolt Pattern: Square 2.200 x 2.200 in
When fitting the 3102-312S, verify the companion flange has a 3.125-inch bolt circle with 4 holes at 0.410-inch diameter in a 2.200 x 2.200-inch square arrangement. The 2.375-inch male pilot on this yoke seats into the female bore of the companion flange; confirm the female bore diameter matches before installation. The square pattern requires precise alignment of both the yoke and companion flange bolt holes during installation.
The 3102-312S uses a male pilot, which is the reverse of the female pilot configuration used on many other flange yokes. Confirm the pilot type (male vs. female) matches your companion flange before ordering. Use 1310 series U-joints at this yoke's ears. Verify bolt circle diameter and pilot before ordering.
Additional information
| Bolt circle dia | 3.125 |
|---|---|
| Bolt hole dia | 0.410 |
| Cj to flat | 2.000 |
| Partn number | 3102-312S |
| Pilot dia | 2.375, M |
| Series | 1310 |
| Bolt Holes | 4 |
| Notes | SQUARE PATTERN 2.200 X 2.200 |
