5003323 Carrier Bearing 10094142 Bearing Internal Diameter: 2.362 , Mounting Holes 8.622 , C/L To Base 3.330 Heavy Duty | 10094142
$86.70
31 in stock
13
People watching this product now!
Description
10094142 center support bearing for 1710/1760/1810 series (also 5003323). Bearing ID 2.326 in, 8.622 in hole spacing, 3.330 in center-to-base. Match ID to midshaft stub OD before ordering.
Full Description

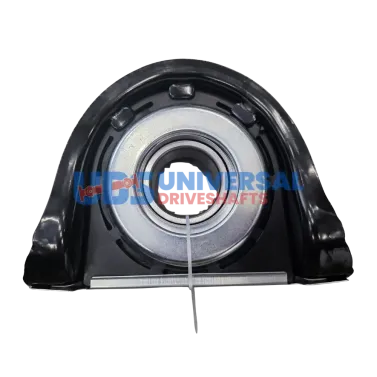

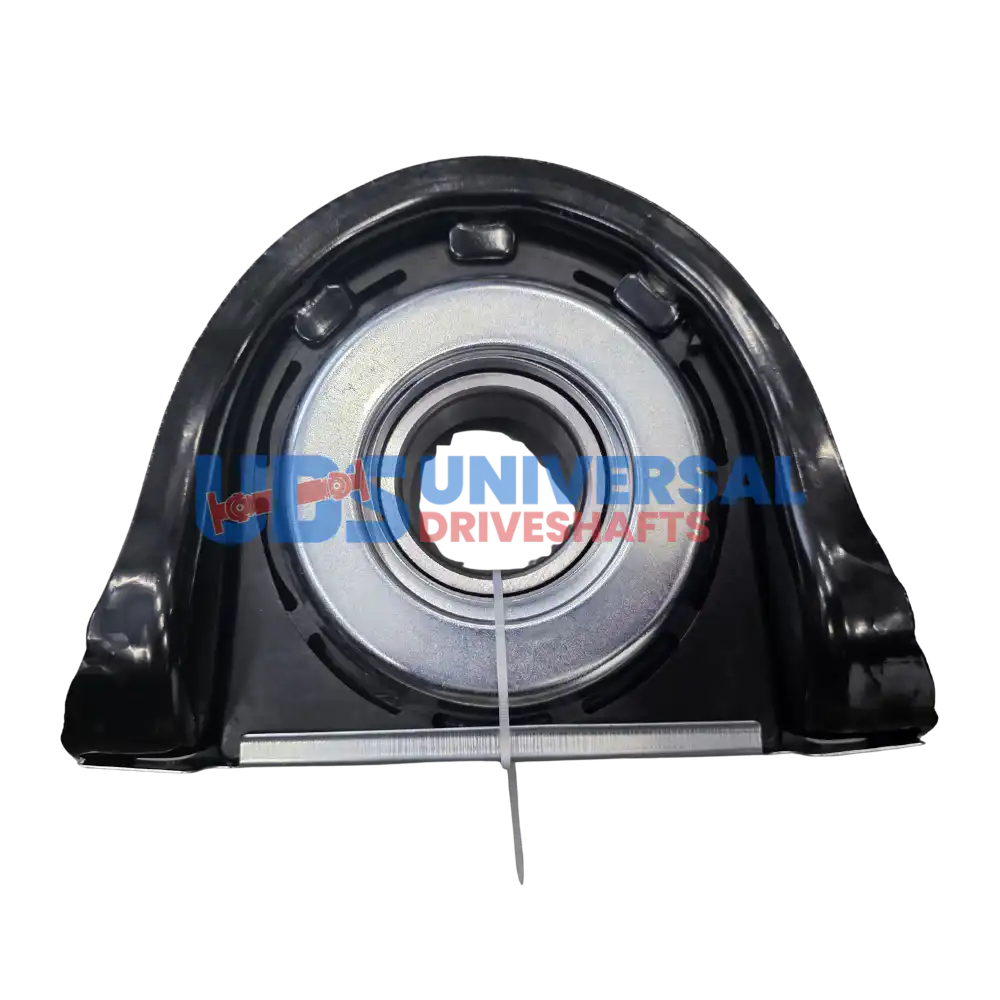

10094142 Center Support Bearing — 1710 / 1760 / 1810 Series Applications
The 10094142 is a center support bearing for 1710, 1760, and 1810 series driveshaft applications. Also referenced as 5003323. The bearing ID is 2.326 inches, the center-to-center of mounting holes is 8.622 inches, the center-bearing-to-base is 3.330 inches, and the C/L-to-base dimension is 2.780 inches. This is a heavy-duty specification suited to large commercial and medium-heavy truck driveshafts.
Specifications
- Part Number: 10094142
- Cross-Reference: 5003323
- Application: 1710 / 1760 / 1810 Series
- Bearing ID: 2.326 in
- Center-to-Center Mount Holes: 8.622 in
- Center Bearing to Base: 3.330 in
- C/L to Base: 2.780 in
When installing the 10094142, confirm the midshaft stub OD is 2.326 inches. The 8.622-inch mounting hole spacing must align with the crossmember bolt pattern on the specific 1710, 1760, or 1810 series application. Note the distinction between the center-bearing-to-base (3.330 in) and the C/L-to-base (2.780 in) — use the specification that corresponds to the measurement method required for your application.
The 1710, 1760, and 1810 series are progressively heavier-duty U-joint series used in medium-heavy and heavy commercial truck drivelines. The 10094142 / 5003323 is a common carrier bearing for these series. Verify the bearing ID of 2.326 inches against the actual midshaft stub OD before installation. Match ID to midshaft stub OD before ordering.
Additional information
| Application | 1710 – 1760 – 1810 |
|---|---|
| Bearing id | 2.326 |
| Ctr to ctr of mount holes | 8.622 |
| Partn number | 10094142 |
| C l to base | 2.780 |
| Center bearing to base | 3.330 |
