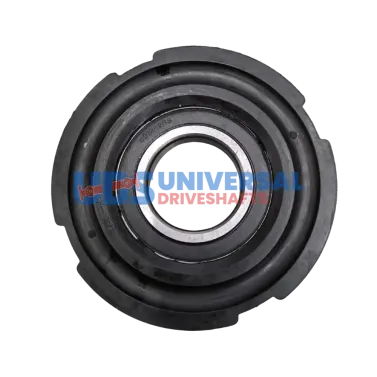

Center Support Bearing CB60SCNA for Scania Application – Heavy Duty

CB60SCNA UDS Center Support Bearing — Scania Heavy Duty

The CB60SCNA is a UDS heavy-duty center support bearing for Scania applications. The bearing ID is 2.362 inches, and the center-bearing-to-base dimension is 3.500 inches. The mounting hole center-to-center is listed as 0, indicating a single-mount or non-standard mounting configuration. This bearing is designed for Scania commercial trucks where the two-piece driveshaft midshaft requires support at a specific chassis point.

Specifications

• Part Number: CB60SCNA
• Brand: UDS
• Application: Scania
• Bearing ID: 2.362 in
• Center Bearing to Base: 3.500 in
• Designation: Heavy Duty

When installing the CB60SCNA, confirm the Scania midshaft stub OD is 2.362 inches. The 3.500-inch center-to-base dimension must match the Scania chassis crossmember geometry at the midshaft support location. The heavy-duty designation means this bearing uses reinforced construction for the high-load operating conditions typical of Scania long-haul truck drivelines.

The CB60SCNA shares the same 2.362-inch bearing ID as the CBFGM-55 and the 81394106037, but uses a different center-to-base dimension and is specific to Scania mounting geometry. These bearings are not interchangeable across applications — confirm the Scania model and crossmember bracket dimensions before ordering. Verify bearing ID and mount dimensions before installation.
