10-1705 – End Yoke – 1000 Series – 1.000″ Bore Dia – 1.62″ Hub Dia

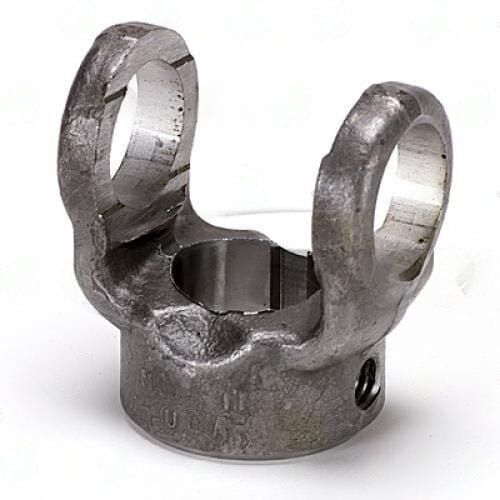

10-1705 1000 Series PTO End Yoke

The 10-1705 is a 1000 series PTO end yoke with a round bore. The bore diameter measures 1.000" with a hub diameter of 1.62". The keyway gap is 0.25", and the CJ-to-end dimension is 1.69". Through hole diameter is 0.94".

Specifications

• Part Number: 10-1705
• Series: 1000
• Bore Type: Round
• Bore Diameter: 1.000"
• Hub Diameter: 1.62"
• Keyway: GAP - 0.25
• CJ to End: 1.69"
• Through Hole: 0.94"

When fitting the 10-1705, verify the 1.000" round bore against the PTO shaft OD and confirm the 0.25" keyway gap matches the key stock. The CJ-to-end of 1.69" is shorter than the standard 2.50" found on most 1000 series yokes — ensure the shaft protrusion matches this shorter geometry.

The 10-1705 pairs the 1.000" round bore with a 1.62" hub diameter and 0.94" through hole. The shorter CJ-to-end (1.69") distinguishes it from longer variants at the same bore size. Confirm through hole clearance of 0.94" accommodates any locking collar or retention hardware used on your application.
