10-1574 – End Yoke – 1000 Series – 1.188″ Bore Dia – 2.25″ Hub Dia

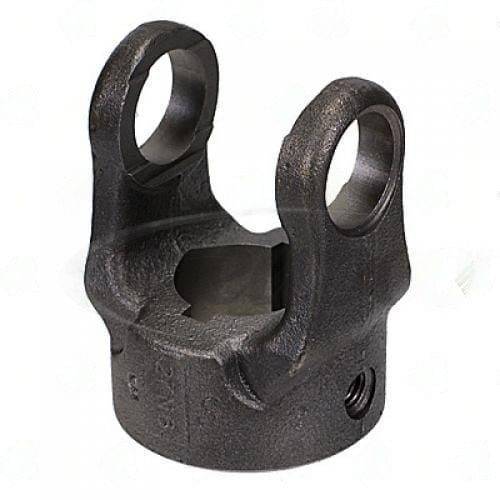

10-1574 1000 Series PTO End Yoke

The 10-1574 is a 1000 series PTO end yoke with a round bore. The bore diameter measures 1.188" with a hub diameter of 2.25". The keyway accepts either a 0.25" or 0.31" gap (GAP-0.25/0.31), and the CJ-to-end dimension is 2.50". Through hole diameter is 1.26".

Specifications

• Part Number: 10-1574
• Series: 1000
• Bore Type: Round
• Bore Diameter: 1.188"
• Hub Diameter: 2.25"
• Keyway: GAP-0.25/0.31
• CJ to End: 2.50"
• Through Hole: 1.26"

When fitting the 10-1574, verify the 1.188" bore diameter against the PTO shaft OD. The dual keyway specification (GAP-0.25/0.31) indicates this yoke may accommodate two different key widths — confirm which key width applies to your shaft before installation. The 2.25" hub diameter must seat properly against the shaft shoulder.

The 1.188" bore diameter on the 10-1574 is larger than the more common 1.125" bore found on other 1000 series yokes. This is not interchangeable with 1.125" bore variants. Cross-reference your shaft OD precisely, as the 0.063" bore difference will prevent proper fit if mismatched.
