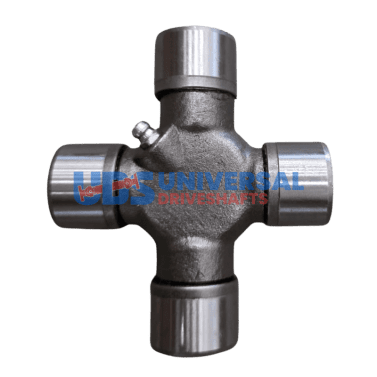

2-1435 UDS Combination U Joint 1350 X 1410 Convertible …

The 2-1435 is a COMBO series outside snap ring retention universal joint measuring 1.188"/1.188" dual cap | 3.625"/4.188" dual width. This is a combination u-joint -- it bridges two different series in one cross. The 2-1435 is greaseable with zerk fitting. Every 2-1435 is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.

2-1435 -- COMBO Series Cap & Width Specifications

The 2-1435 specs: 1.188"/1.188" dual cap | 3.625"/4.188" dual width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Dual cap diameters (1.188" and 1.188") bridge two different series yokes in a single cross. Bearing width (3.625" and 4.188" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove. Combo U Joint 1350 x 1410.

Confirm both ends of the driveshaft before installing the 2-1435. Combination u-joints require matching the correct series at each end -- the 1.188" caps go into one yoke, the 1.188" caps go into the other. Getting the orientation wrong means the driveshaft won't balance and the 2-1435 will fail early. Measure both yoke bores with calipers before ordering -- don't rely on the vehicle spec alone.

Installation Notes for 2-1435

Before installing the 2-1435, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the 2-1435 before it ever sees load.

After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The 2-1435 should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.

Key Features

• Series: COMBO series
• Cap dia: 1.188" x 1.188" -- must match yoke bore exactly
• Width: 3.625" x 4.188" -- controls yoke ear span
• Style: outside snap ring retention -- verify yoke groove type before ordering
• Greaseable -- zerk fitting included, service at regular intervals
• This is a combination u-joint -- it bridges two different series in one cross.
• Brand: UDS
• Note: Combo U Joint 1350 x 1410

Specifications

• SKU: 2-1435
• Brand: UDS
• Series: COMBO
• Cap Dia 1: 1.188"
• Cap Dia 2: 1.188"
• Width 1: 3.625"
• Width 2: 4.188"
• Snap Ring Style: OSR
• Lube: Yes -- grease fitting
• Notes: Combo U Joint 1350 x 1410
