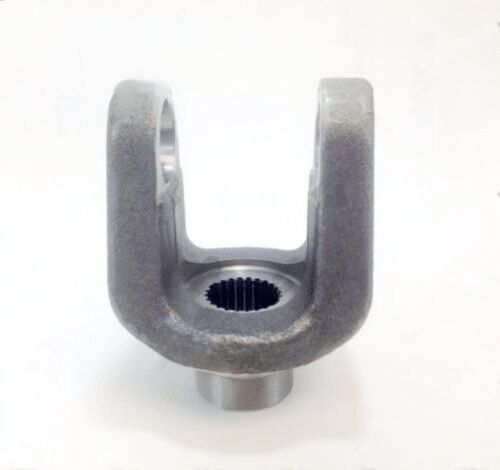

1204-241U – End Yoke – 1251 Series – 995″ Splines dia – 1.342″ Hub Dia

Replacement End Yoke 1204-241U -- Precision-Matched for 1251 Series Builds

An end yoke terminates the driveshaft at the transmission or transfer case output shaft, converting spline motion to u-joint rotation. The 1204-241U is a 1251 series end yoke designed for a 995-inch spline diameter with 22/24 splines and a 1.342-inch hub diameter. Whether this is a straightforward OEM replacement or a component in a custom driveshaft assembly, the 1204-241U provides a dimensionally verified starting point rather than a catalog guess.

Specification Detail

Sourcing a End Yoke: What to Cross-Reference

When replacing a end yoke, the safest approach is to cross-reference the part number stamped on the original. If that number has been superseded or the original part is missing, the critical dimensions are spline diameter of 995 with 22/24 splines. Match these to the values in the specification table above. All other details -- material grade, surface finish, cap bore size -- are built into the 1251 series designation and will be correct if the key dimensions match.

Assembly Reminders

• Never use a hammer directly on the yoke body -- use a brass drift or press for cap installation
• Snap ring grooves must be clean and undamaged for the circlip to seat at full depth
• Confirm 1251 series cap OD before pressing -- an undersized cap will not carry load correctly
• Check transmission output shaft seal condition -- a failing seal will contaminate the new yoke quickly
• Verify spline diameter of 995 with 22/24 splines with calipers after assembly, before road test

Note: USED ON 2 PCS SHAFT FOR SUBARU TO REPLACE THE CENTER CV SECTION

Universal Driveshafts stocks the 1204-241U for immediate shipment. Packaging protects finished surfaces during transit.
