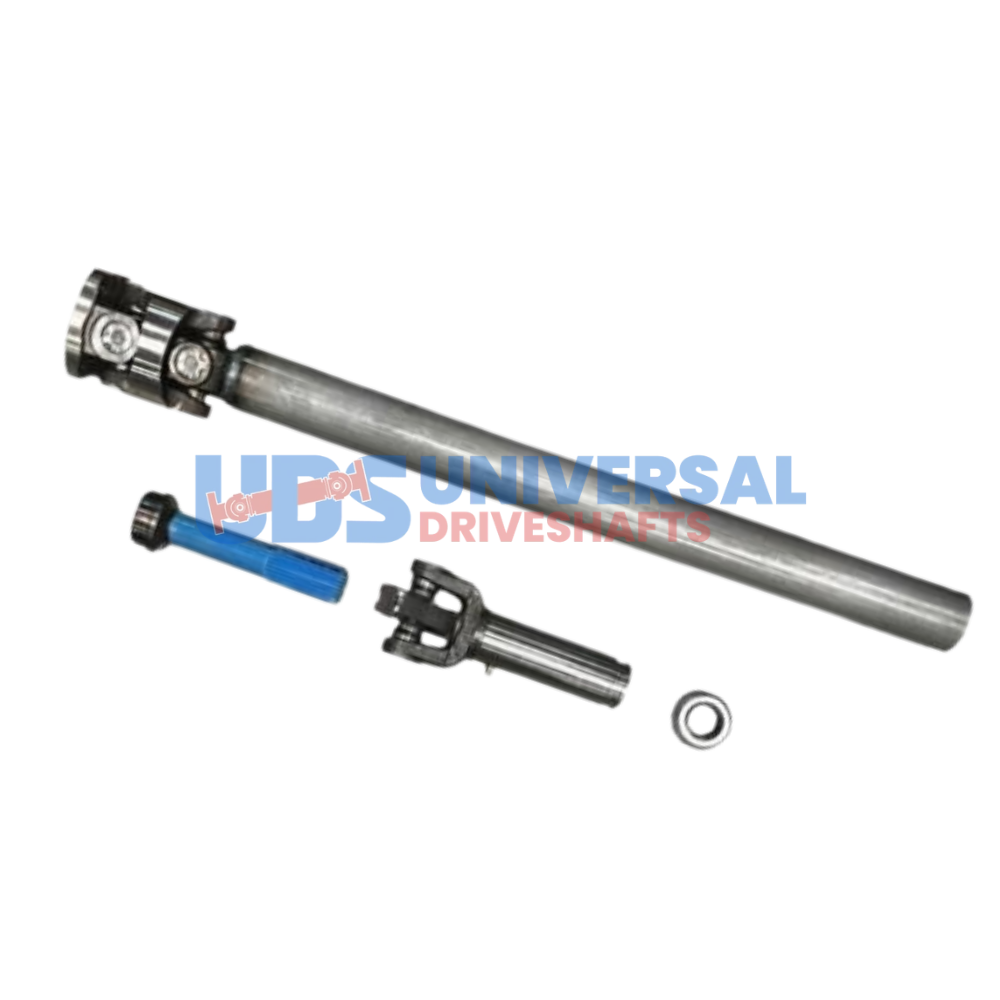

3594-2000 – UNWELDED 1350 CV DRIVESHAFT KIT – 2.000″ PILOT / 4.250″ BOLT CIRCLE – 25-095 TUBING – 30″ DOM TUBE

UNWELDED 1350 CV DRIVESHAFT KIT – 2.000" PILOT / 4.250" BOLT CIRCLE – 25-095 TUBING – 30" DOM TUBE

Unwelded 1350 double cardan CV driveshaft assembly featuring premium 25-095 DOM tubing, 1350 series U-joints, and a 30-inch tube section for custom-length applications. Designed for high-angle driveline performance in off-road, rock crawler, mud truck, racing, and heavy-duty 4x4 builds.

This 1350 CV shaft assembly is commonly used in Ford drivetrain applications and works with companion flanges for NP205 and Jeep JK transfer cases using a 2.000" pilot diameter and 4.250" bolt circle pattern.

Engineered for strength and smooth operation under extreme driveline angles, the double cardan constant velocity head helps reduce vibration while improving durability in lifted truck and custom suspension setups.

Features & Specifications

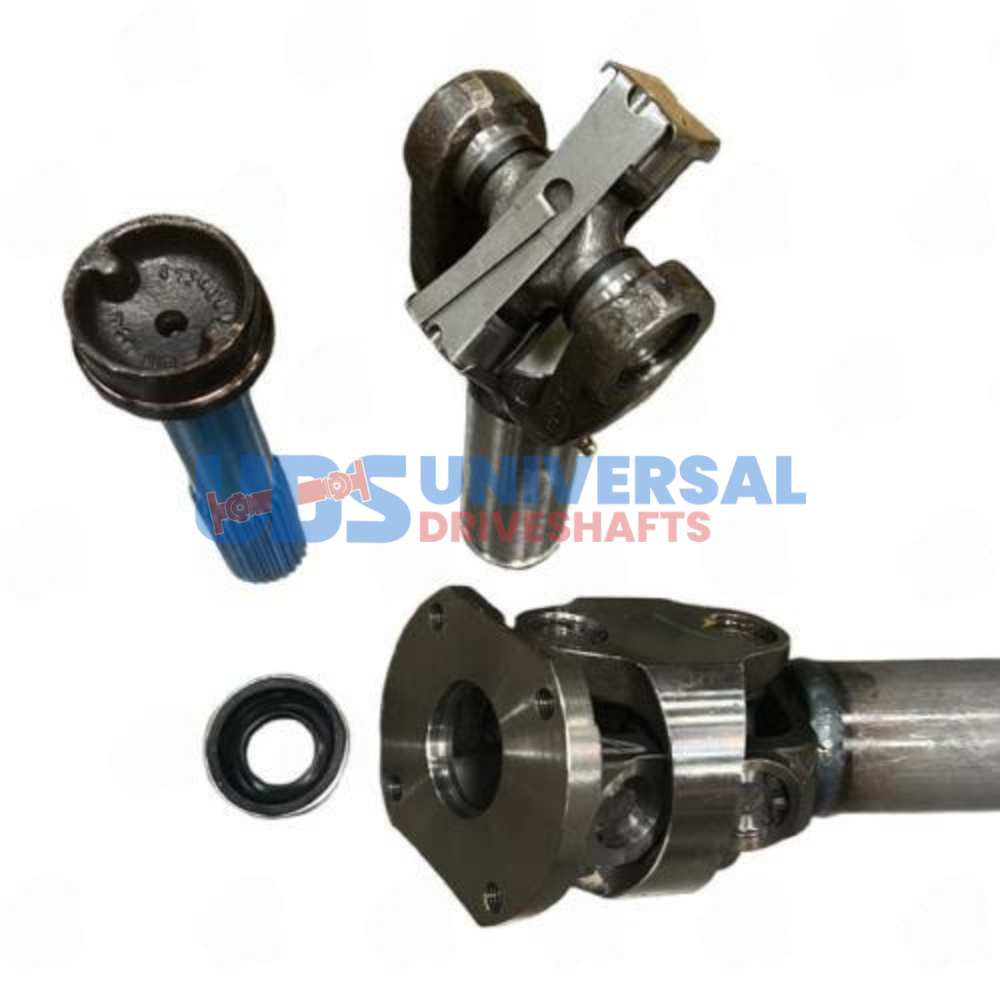

• Heavy-duty 1350 double cardan CV head

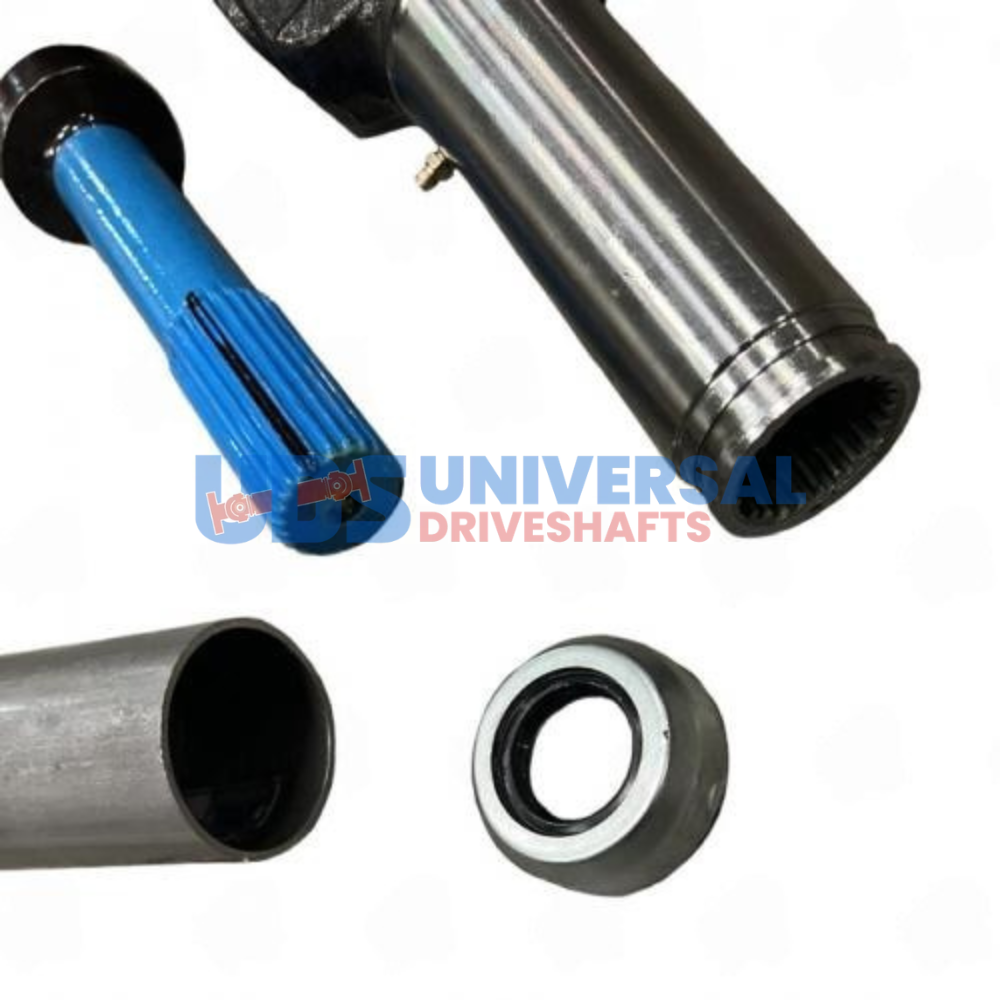

• Includes 30" of 25-095 DOM driveshaft tubing
• Uses 1350 series U-joints
• 2.000" pilot diameter
• 4.250" bolt circle
• Unwelded for custom fabrication and precise driveline length setup
• Ideal for custom rear driveshaft or front driveshaft applications
• Popular for Ford trucks, NP205 conversions, and Jeep JK transfer case swaps
• Excellent for lifted trucks, off-road vehicles, crawlers, prerunners, and competition rigs

Compatibility

Compatible with:

• NP205 transfer case companion flanges
• Jeep JK transfer case companion flanges
• Many custom Ford driveline applications

Important Note

This CV assembly uses a proprietary ball stub and internal centering ball design that is not compatible with Spicer components or Spicer replacement internals.

Perfect for fabricators and drivetrain builders looking for a strong, high-angle 1350 CV driveshaft solution with custom-length flexibility.
