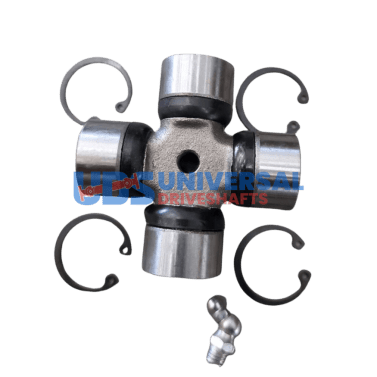

UJ27071 UDS Universal Joint – Width 2.795 x Cap Dia 1.06…
$12.26
+50 in stock
13
People watching this product now!
Description
UJ27071 — MULTIPLE series, 1.062″ cap, 2.795″ width. Complete greaseable universal joint. Verify cap dia and snap ring style before ordering.
Full Description
The uj27071 is a MULTIPLE series outside snap ring retention universal joint measuring 1.062" cap dia | 2.795" width. The uj27071 is greaseable with zerk fitting. Every uj27071 is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.
UJ27071 -- MULTIPLE Series Cap & Width Specifications
The uj27071 specs: 1.062" cap dia | 2.795" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (2.795" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove. Use for Multiple applications.
Verify the yoke bore diameter against the uj27071 cap size before installing. The snap ring style (outside snap ring retention) must match the yoke groove pattern -- OSR yokes have an external groove; ISR yokes have an internal groove. The uj27071 requires a grease gun at installation and at regular service intervals. Correct installation torque on the strap kit or U-bolt is critical -- undertorqued straps allow the cap to walk under load.
Installation Notes for uj27071
Before installing the uj27071, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the uj27071 before it ever sees load.
After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The uj27071 should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.
Key Features
- Series: MULTIPLE series
- Cap dia: 1.062" -- must match yoke bore exactly
- Width: 2.795" -- controls yoke ear span
- Style: outside snap ring retention -- verify yoke groove type before ordering
- Greaseable -- zerk fitting included, service at regular intervals
- Brand: UDS
- Note: Use for Multiple applications
Specifications
- SKU: UJ27071U
- Part Number: UJ27071
- Brand: UDS
- Series: MULTIPLE
- Cap Dia 1: 1.062"
- Width 1: 2.795"
- Snap Ring Style: OSR
- Lube: Yes -- grease fitting
- Notes: Use for Multiple applications
Additional information
| Series |
MULTIPLE |
|---|---|
| Style |
OSR |
| Cap dia 1 |
1.062 |
| Width 1 |
2.795 |
| Lube |
Yes |
| Brand |
UDS |
| Partn number |
UJ27071 |
| Notes |
Use for Multiple applications |
