Brand:

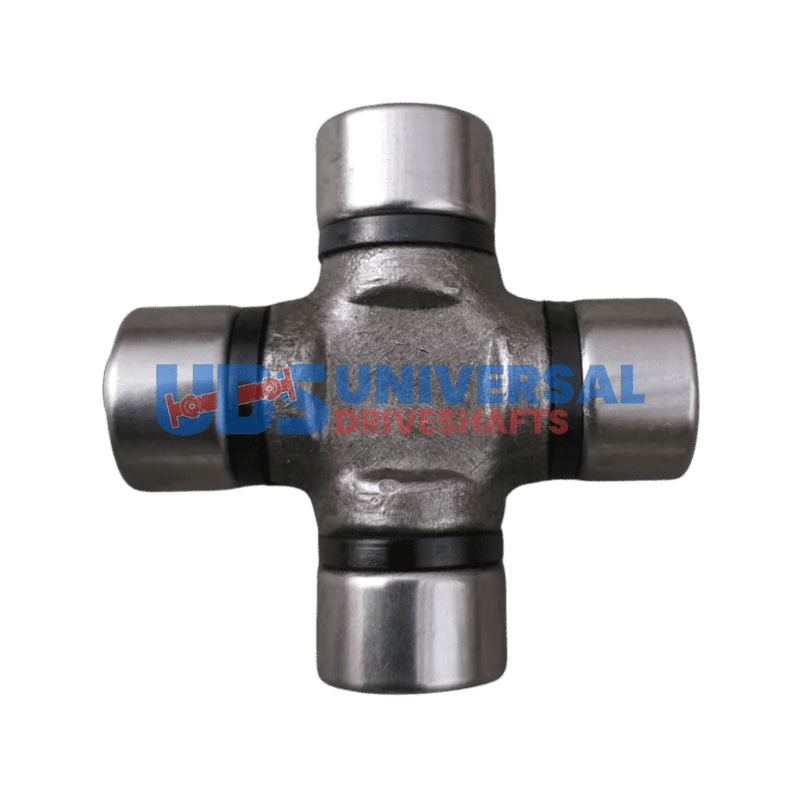

UJ2265N UDS UJ2265 STAKED HONDA U JOINT 22X65 CRIMPED U …
$12.64
29 in stock
15
People watching this product now!
Description
UJ2265N — STAKED series, 0.866″ cap, 2.559″ width. Proven sealed universal joint. Verify cap dia and snap ring style before ordering.
Full Description
The uj2265n is a STAKED series STAKED retention universal joint measuring 0.866" cap dia | 2.559" width. The uj2265n is sealed, no grease fitting required. Every uj2265n is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.
UJ2265N -- STAKED Series Cap & Width Specifications
The uj2265n specs: 0.866" cap dia | 2.559" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (2.559" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove. Staked or crimped universal joints do not have snap rings.
Verify the yoke bore diameter against the uj2265n cap size before installing. The snap ring style (STAKED retention) must match the yoke groove pattern -- OSR yokes have an external groove; ISR yokes have an internal groove. The uj2265n is factory-sealed -- no maintenance interval, no grease fitting. Correct installation torque on the strap kit or U-bolt is critical -- undertorqued straps allow the cap to walk under load.
Installation Notes for uj2265n
Before installing the uj2265n, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the uj2265n before it ever sees load.
After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The uj2265n should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.
Key Features
- Series: STAKED series
- Cap dia: 0.866" -- must match yoke bore exactly
- Width: 2.559" -- controls yoke ear span
- Style: STAKED retention -- verify yoke groove type before ordering
- Sealed -- factory pre-lubed, no maintenance required
- Brand: UDS
- Note: Staked or crimped universal joints do not have snap rings
Specifications
- SKU: UJ2265N
- Brand: UDS
- Series: STAKED
- Cap Dia 1: 0.866"
- Width 1: 2.559"
- Snap Ring Style: STAKED
- Lube: No -- sealed
- Notes: Staked or crimped universal joints do not have snap rings
Additional information
| Series |
STAKED |
|---|---|
| Style |
STAKED |
| Cap dia 1 |
0.866 |
| Width 1 |
2.559 |
| Lube |
No |
| Brand |
UDS |
| Notes |
Staked or crimped universal joints do not have snap rings |
