Brand:

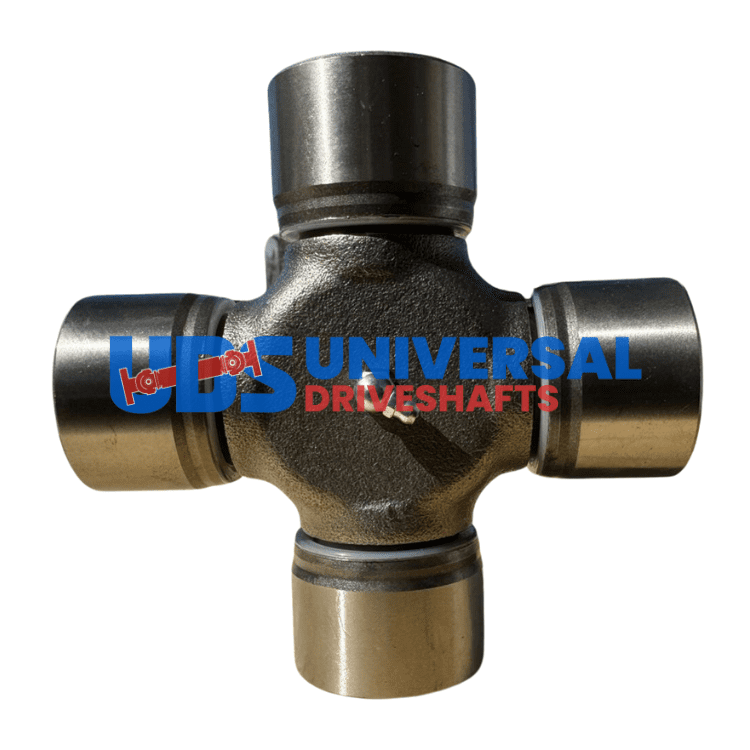

UJ2060 UDS / 68760 series 59 x 167.8 Heavy Duty U joint
$155.09
33 in stock
13
People watching this product now!
Description
UJ2060 — 68760 series, 2.322″ cap, 6.590″ width. Premium greaseable universal joint. Verify cap dia and snap ring style before ordering.
Full Description
The uj2060 is a 68760 series combination (OSR + ISR) snap ring retention universal joint measuring 2.322" cap dia | 6.590" width. This is a combination u-joint -- it bridges two different series in one cross. The uj2060 is greaseable with zerk fitting. Every uj2060 is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.
UJ2060 -- 68760 Series Cap & Width Specifications
The uj2060 specs: 2.322" cap dia | 6.590" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (6.590" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove.
Confirm both ends of the driveshaft before installing the uj2060. Combination u-joints require matching the correct series at each end -- the 2.322" caps go into one yoke, the 2.322" caps go into the other. Getting the orientation wrong means the driveshaft won't balance and the uj2060 will fail early. Measure both yoke bores with calipers before ordering -- don't rely on the vehicle spec alone.
Installation Notes for uj2060
Before installing the uj2060, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the uj2060 before it ever sees load.
After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The uj2060 should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.
Key Features
- Series: 68760 series
- Cap dia: 2.322" -- must match yoke bore exactly
- Width: 6.590" -- controls yoke ear span
- Style: combination (OSR + ISR) snap ring retention -- verify yoke groove type before ordering
- Greaseable -- zerk fitting included, service at regular intervals
- This is a combination u-joint -- it bridges two different series in one cross.
- Brand: UDS
Specifications
- SKU: UJ2060U
- Part Number: UJ2060
- Brand: UDS
- Series: 68760
- Cap Dia 1: 2.322"
- Width 1: 6.590"
- Snap Ring Style: COMBO
- Lube: Yes -- grease fitting
Additional information
| Brand |
UDS |
|---|---|
| Cap dia 1 |
2.322 |
| Width 1 |
6.590 |
| Lube |
Y |
| Style |
COMBO |
| Partn number |
UJ2060 |
| Series |
68760 |
