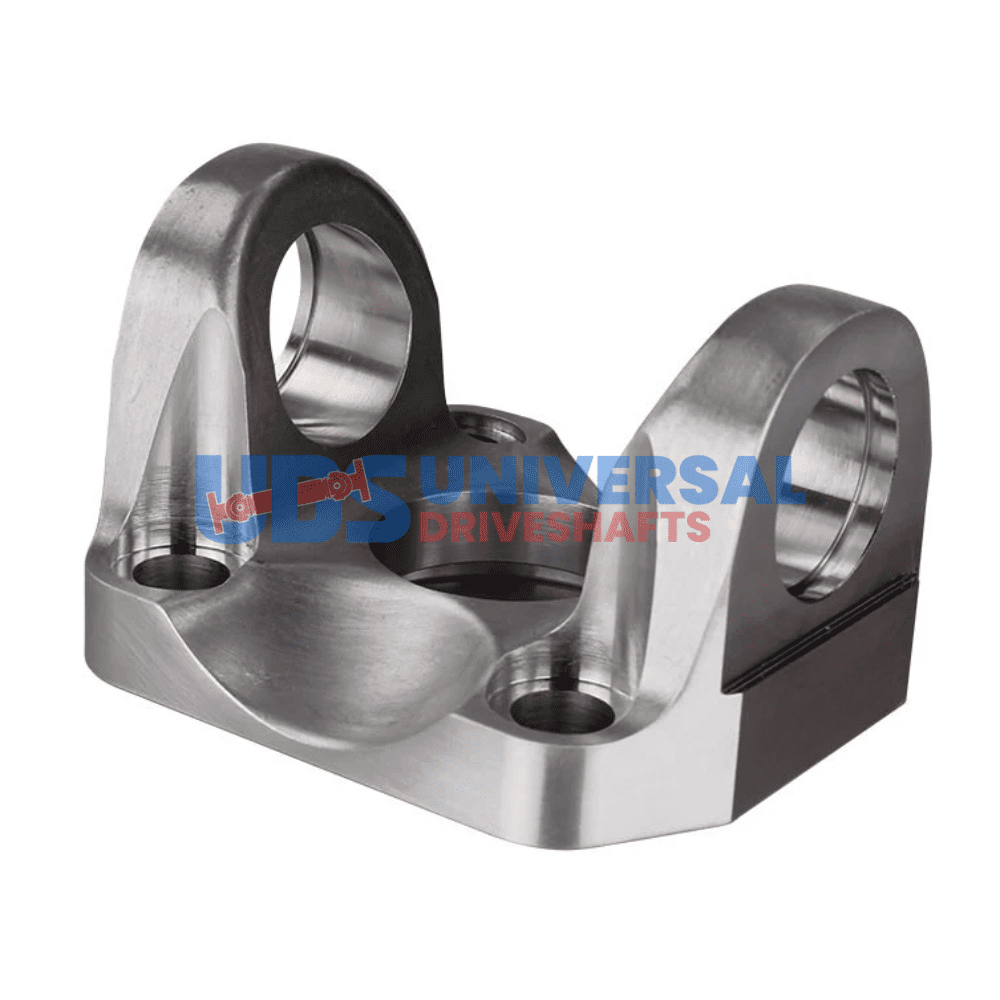

UDS T3-2-949A – 1350 Flange Yoke for Mustang 7.5″ & 8.8″ Differentials
$193.75
1 in stock
19
People watching this product now!
Description
T3-2-949AU UDS 1350 series 4-bolt aluminum flange yoke for Ford Mustang 7.5″ and 8.8″ differentials. 2.000″ pilot, 3.500″ bolt circle, 0.516″ holes, 1.550″ CJ-to-flat.
Full Description
T3-2-949AU UDS 1350 Series Flange Yoke — Ford Mustang 7.5" and 8.8" Differentials
The T3-2-949AU is a 1350 series flange yoke manufactured by UDS from 6061-T6 aluminum. It is designed for Ford Mustang 7.5-inch and 8.8-inch differential applications. The pilot diameter is 2.000 inches, the bolt circle diameter is 3.500 inches, and the bolt hole diameter is 0.516 inches with 4 holes. The CJ-to-flat dimension is 1.550 inches.
Specifications
- Part Number: T3-2-949AU
- Brand: UDS
- Series: 1350
- Pilot Diameter: 2.000"
- Bolt Circle Diameter: 3.500"
- Bolt Hole Diameter: 0.516"
- Bolt Holes: 4
- CJ to Flat: 1.550"
- Material: 6061-T6 Aluminum
When fitting the T3-2-949AU, confirm the Ford Mustang 7.5-inch or 8.8-inch differential companion flange uses a 2.000-inch pilot and a 3.500-inch bolt circle with 4 x 0.516-inch holes. The 1.550-inch CJ-to-flat dimension affects driveshaft working angle calculations — account for this when measuring driveshaft installed length.
The T3-2-949AU is machined from 6061-T6 aluminum, reducing unsprung and rotating mass compared to a steel flange yoke. The 1350 series U-joint interface is appropriate for Mustang driveline torque levels. Match bolt circle diameter and pilot diameter against your specific differential before ordering — 7.5-inch and 8.8-inch Mustang axles use the same bolt pattern but confirm pilot diameter on your specific application.
Additional information
| Partn number | T3-2-949A |
|---|---|
| Bolt circle dia | 3.5 |
| Bolt hole dia | 0.516 |
| Series | 1350 |
| Brand | UDS |
| Notes | 6061-T6 Aluminum |
| Bolt Holes | 4 |
| Cj to flat | 1.550 |
