Brand:

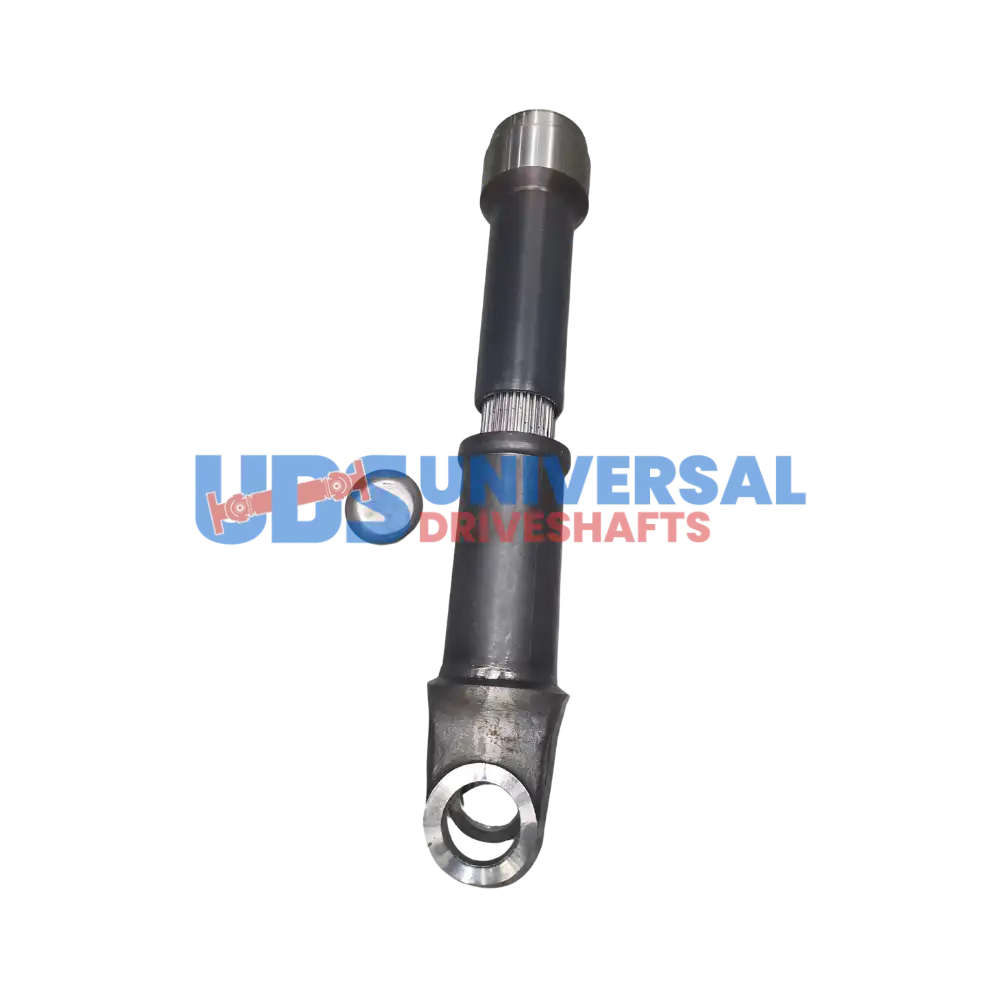

SA68740-346 Driveshaft Slip Yoke 68740/2040 Series Slip Joint , Center Line To Weld: 346mm, Tube: 100×3.875 Butt Diameter: 92.25
$230.67
13 in stock
20 People watching this product now!
Description
SA68740-346 UDS 68740/2040 slip yoke. 47.6x135mm, 34 splines 61.10mm dia, fits 100×3.875 tube. CL to weld 346mm, butt dia 92.25mm.
Full Description
SA68740-346 -- 68740/2040 Series Driveshaft Slip Yoke
SA68740-346 is a 68740/2040 series slip yoke for commercial driveshaft applications. The centerline-to-weld dimension of 346mm indicates this is a longer slip yoke intended for applications requiring extended axial travel. The 34-spline, 61.10mm spline diameter is the engagement specification for the mating shaft.
| Spec | Value |
|---|---|
| Series | 687.40/2040 |
| U-Joint | 47.6mm x 135mm |
| Splines | 34 x 61.10mm dia |
| Tube Fit | 100mm x 3.875mm wall |
| Butt Dia | 92.25mm |
| CL to Weld | 346mm |
The 61.10mm spline diameter must be matched to the companion stub shaft spline. A 34-spline specification at this diameter is a European commercial truck standard -- verify the spline count on the mating stub before ordering. Incorrect spline count prevents engagement.
See stub and midship shaft components for companion slip stub shafts and assemblies.
Additional information
| Butt dia | 92.25 |
|---|---|
| Material | STEEL |
| Notes | Driveshaft Slip Yoke 47.6×135 / 2040 Fits: 100×3.875 |
| Partn number | SA68740-346 |
| Series | 687.40 |
| Brand | UDS |
| Splines count | 34 |
| Splines dia | 61.10mm |
| Fits to tube | 100×3.875 |
