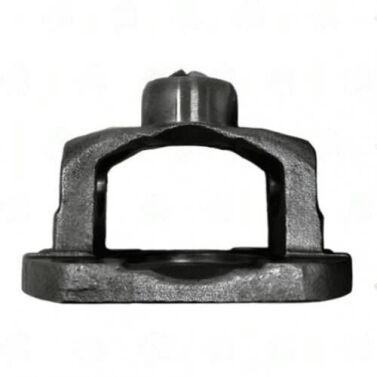

P211913X – Cv Flange Yoke – Ball Stud Dia 0.5″ – Bolt Circle Dia 4.25″ – Bolt Hole Dia 462″

P211913X is a Cv Flange Yoke that plays a crucial role in connecting your driveshaft to the transmission or differential. Before installation, ensure you check the critical dimensions: this yoke features a 0.5" ball stud diameter, a 4.25" bolt circle diameter, and a 3.125" pilot diameter. These measurements are essential for proper fitment and function. When preparing to install the P211913X, take note of the following:

• Verify the bolt hole diameter of 0.462" to ensure compatibility with your mounting hardware.
• Check the C L to face measurement of 1.625" for proper alignment.
• Confirm the pilot type is F, which is designed for specific applications.
• Always ensure that the yoke is phased correctly with the opposite yoke to prevent vibrations.

Common mistakes during installation include overlooking the spline engagement depth and forcing the spline entry, which can lead to damage. Use a bit of grease on the splines for smoother installation and to prevent galling. The P211913X is classified as LD, making it suitable for light-duty applications. Remember, proper installation is key to maintaining driveline performance and longevity.
