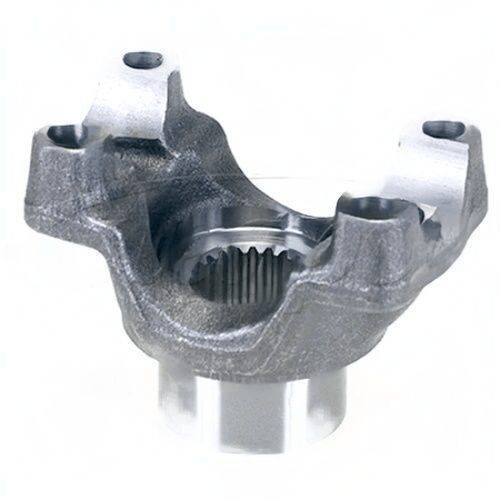

N3-4-JK08 – End Yoke – 1350 Series – 1.250″ Splines Dia – 1.85″ Hub Dia
$117.71
4 in stock
20 People watching this product now!
Description
N3-4-JK08 end yoke, 1350 series. 1.250″ x 24 spline | 1.85″ hub dia | 3.100″” CJ-to-end | 1.500″ bore. Splined bore — verify count and diameter before ordering.
Full Description
End yoke failures are usually visible: worn splines, cracked ears, or corrosion at the cap bores. The N3-4-JK08 is the correct 1350 series replacement.
N3-4-JK08 End Yoke -- 1350 Series Spline & Fitment
The 1350 series is the standard for 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds.
Dimensions on the N3-4-JK08 end yoke: 1.250" x 24 spline | 1.85" hub dia | 3.100"" CJ-to-end | 1.500" bore. FITS JEEP WRANGLER JK DANA 30 AND DANA 44 FRONT END. Verify spline count and diameter against your axle or transfer case output shaft.
The hub diameter and CJ-to-end measurement determine clearance and working angle -- both matter on lifted vehicles.
Key Features
- Series: 1350 -- 3/4-ton trucks -- F-250, Ram 2500, Dana 44/60 axles, performance 4x4 builds
- Spline: 1.250" x 24 -- must match axle/T-case shaft exactly
- Hub dia: 1.85" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.100"" -- affects driveshaft working length and angle
- Bore: 1.500" -- confirm against shaft OD
- Retention: UB -- verify against your yoke configuration
- Note: FITS JEEP WRANGLER JK DANA 30 AND DANA 44 FRONT END
Specifications
- SKU: N3-4-JK08
- Brand: UDS
- Series: 1350
- Spline Dia: 1.250"
- Spline Count: 24
- Hub Dia: 1.85"
- CJ to End: 3.100""
- Through Hole: 1.500"
- Style: UB
- Notes: FITS JEEP WRANGLER JK DANA 30 AND DANA 44 FRONT END
Additional information
| Cj to end | 3.100" |
|---|---|
| Hub dia | 1.85 |
| Notes | FITS JEEP WRANGLER JK DANA 30 AND DANA 44 FRONT END |
| Partn number | N3-4-JK08 |
| Series | 1350 |
| Splines count | 24 |
| Splines dia | 1.250" |
| Style | UB |
| Through hole | 1.500" |
