Brand:
Mercedes Sprinter /Freightliner Sprinter / Dodge Sprinter / VW Crafter 2006-2018 CB4721196
$96.71
7 in stock
14
People watching this product now!
Description
CB4721196 UDS center support bearing for Mercedes/Dodge/Freightliner Sprinter and VW Crafter 2006-2018. Bearing ID 1.378″, mount spacing 7.625″. Verify ID and hole spacing.
Full Description

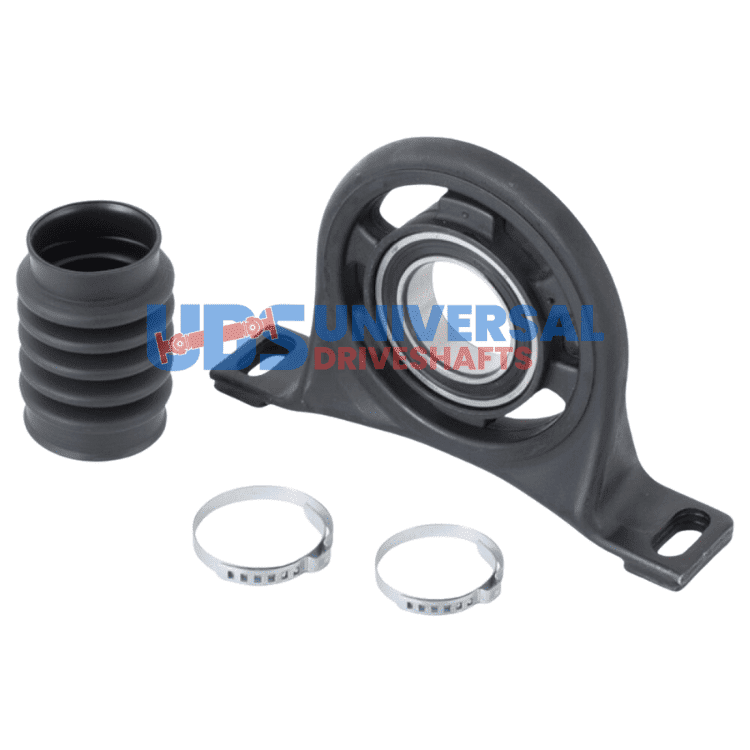

CB4721196 UDS Center Support Bearing – Mercedes Sprinter / Dodge Sprinter / VW Crafter 2006-2018
The CB4721196 is a UDS center support bearing for 1350 series two-piece driveshafts. Bearing bore (ID) is 1.378". Center-to-center mount hole spacing is 7.625" and center bearing to base dimension is 2.750". This bearing is specified for Mercedes Benz Sprinter (906) 2006-2018, Dodge Sprinter 2500/3500 2007-2018, Freightliner Sprinter, and VW Crafter.
Specifications
- Part Number: CB4721196
- Brand: UDS
- Series: 1350
- Bearing ID: 1.378"
- Center-to-Center Mount Holes: 7.625"
- Center Bearing to Base: 2.750"
- Application: Mercedes Benz Sprinter (906) 2006-2018, Dodge Sprinter 2500/3500 2007-2018
When fitting the CB4721196, the midshaft stub OD must match the 1.378" bearing bore. The 7.625" mounting hole center-to-center spacing must align with the crossmember mounting holes on the Sprinter or Crafter chassis. The 2.750" center bearing to base height determines the bracket stack height relative to the frame rail.
The CB4721196 is compatible with both Mercedes Benz Sprinter 906 platform (2006-2018) and Dodge/Freightliner Sprinter variants through 2018, as well as the VW Crafter. Confirm model year and body configuration — Sprinter wheelbase variants use different midshaft lengths — then verify bearing ID and mount spacing match your chassis bracket before ordering.
Additional information
| Brand | UDS |
|---|---|
| Notes | Mercedes Benz Sprinter (906) 2006-2018 Dodge Sprinter 2500/3500 2007-2018 |
| Application | DODGE, MERCEDES |
| Bearing id | 1.378 |
| Ctr to ctr of mount holes | 7.625 |
| Center bearing to base | 2.750 |
| Series | 1350 |
