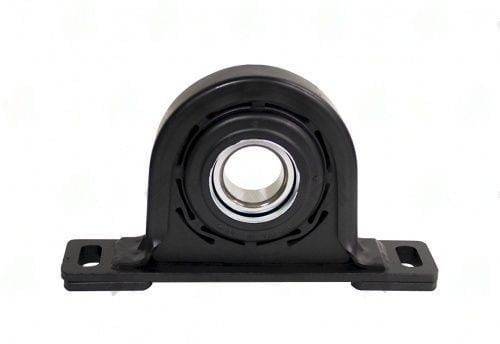

3580-34 – Center Support Bearing – 1350 Series – 1.378″ ID – 2.750″ Center Bearing To Base
$72.15
2 in stock
Description
1350 series center support bearing with 1.378″ bore and 2.750″ center-to-base height; rubber-isolated ball bearing assembly for two-piece driveshaft hanger positions.
Full Description
| SKU | 3580-34 |
|---|---|
| Series | 1350 (1.188" U-joint cap diameter) |
| Bore ID | 1.378" (35 mm) |
| Center to Base | 2.750" |
| Type | Rubber-isolated center support bearing |
| Related SKU | 3580-99 (same bearing + dust cap) |
- 2.750" center-to-base height -- taller than the standard 2.250" units; measure your crossmember bracket before ordering
- 35 mm bore matches medium-duty truck stub shafts common in 1350-series builds
- Bonded rubber isolator reduces driveshaft vibration transmission to the chassis
- Spicer/Dana cross-references in the 2-26-357 and 211499X families may apply depending on application
If your application involves off-road or heavy towing, consider the 3580-99 variant which adds a dust cap over the inboard bearing face. The base 3580-34 leaves the inboard face exposed -- acceptable for on-road use but accelerates contamination wear in harsh environments.
Additional information
| Application | 1350 |
|---|---|
| Bearing id | 1.378 |
| Center bearing to base | 2.750 |
| Ctr to ctr of mount holes | 7.625 |
| Notes | Sprinter, Used in 1350 series new shaft conversions |
| Partn number | 3580-34 |
