BW1A – Balance Weigths – Notes Aluminum 4.2 Gram / .14oz – Weight 0.14

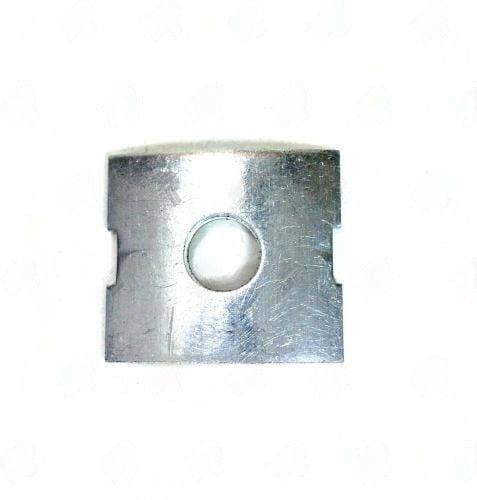

BW1A Aluminum Balance Weight -- 4.2 Gram (0.14 oz)

The BW1A represents the fine end of the aluminum balance weight scale. At 4.2 grams (0.14 oz), this is a trim-correction weight -- not a primary correction weight. An upgrade path scenario: if you removed a worn driveshaft that vibrated and the replacement shaft shows 0.14 oz residual imbalance at the machine, the BW1A closes that gap in one weld rather than requiring a second pass with a smaller shim.

Aluminum at this weight means the physical size is slightly larger than BW1 steel, but both deliver 0.14 oz of correction. Choose aluminum when you need a slightly larger contact surface for the weld bead, or when working on lighter-weight aluminum driveshaft tubes where thermal input during welding must be minimized.

• Weight: 4.2 g / 0.14 oz
• Material: Aluminum
• Weld wire: ER4043 or ER5356 recommended
