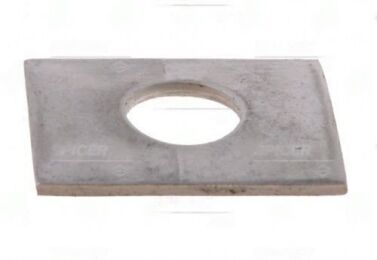

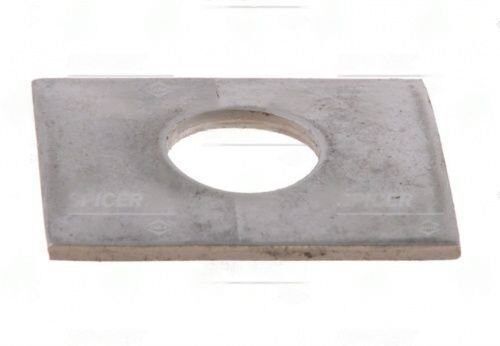

231817-1 – Balance Weigths – Weight 0.19

The 231817-1 fills the gap between the micro-trim 231817-9 (0.13 oz) and the mid-range 231817-2 (0.27 oz). At 0.19 oz, this is a light correction weight used when the balancing machine shows a residual that the lighter -9 would undercorrect but the -2 would overshoot. Having the full 231817 series on hand allows single-weight corrections across a wide range without stacking.

• SKU: 231817-1
• Weight: 0.19 oz
• Series: 231817 (Spicer-compatible)
• Position: Between 231817-9 (0.13 oz) and 231817-2 (0.27 oz)
• Cross-reference: Spicer 231817-1

When working on a driveshaft that originally carried a 231817-series weight and the weight is lost or damaged, the balancing machine must be run to determine the replacement mass. Do not assume the original weight was correct -- previous service may have used a non-standard correction.
