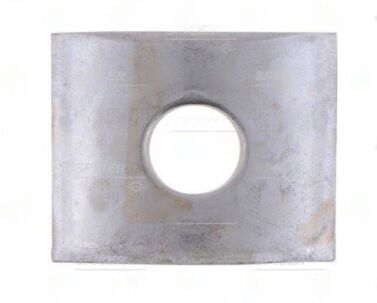

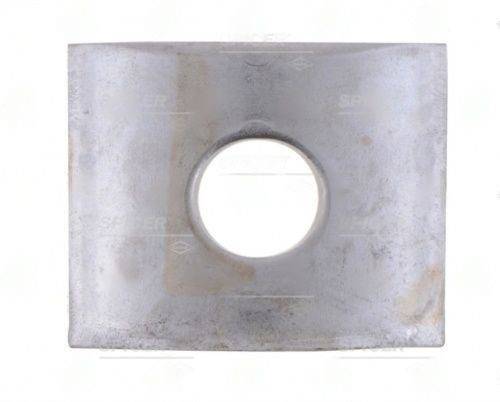

231546-2 – Balance Weigths – Weight 0.62

The 231546-2 at 0.62 oz represents the mid-point in the 231546 balance weight family. This weight is common in primary correction applications on 2.5 and 3-inch driveshaft tubes used in light trucks and vans. A single 0.62 oz weight at the correct angular position typically brings residual imbalance below 0.1 oz -- within spec for most highway-speed applications.

SKU

231546-2

Weight

0.62 oz

Series

231546 (Spicer-compatible)

Cross-reference

Spicer 231546-2

Placement tip: the angular position from the balancing machine readout is measured from a reference mark on the tube (typically the heaviest point indicator). When the machine calls out "add weight at 165 degrees" -- that means 165 degrees from the reference mark in the direction of shaft rotation, not from the imbalance location.
