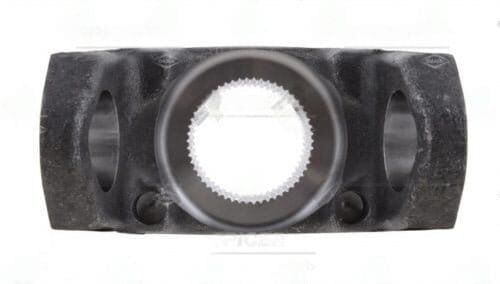

6.5-4-4631 – End Yoke – 1810 Series – 2.794″ Splines Dia – 54 Spline
$275.78
0 in stock
10
People watching this product now!
Description
End yoke 6.5-4-4631, 1810. Specs: 2.794 x 54 spline | 0.000″” hub dia | 5.652″ CJ-to-end | 2.750″ bore. HUB DIAMETER NOT GROUND. Spline count and series must match.
Full Description
If you're chasing a vibration that changes with driveshaft angle, check the end yoke first. Worn splines or cracked ears on the 6.5-4-4631 will cause exactly that.
6.5-4-4631 End Yoke -- 1810 Series Spline & Fitment
The 1810 series is the standard for Class 7-8 commercial vehicles and heavy industrial equipment.
Dimensions on the 6.5-4-4631 end yoke: 2.794 x 54 spline | 0.000"" hub dia | 5.652" CJ-to-end | 2.750" bore. HUB DIAMETER NOT GROUND. Strap/bearing-plate retention -- more secure under high torque than snap ring styles. Verify spline count and diameter against your axle or transfer case output shaft.
The hub diameter and CJ-to-end measurement determine clearance and working angle -- both matter on lifted vehicles.
Key Features
- Series: 1810 -- Class 7-8 commercial vehicles and heavy industrial equipment
- Spline: 2.794 x 54 -- must match axle/T-case shaft exactly
- Hub dia: 0.000"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 5.652" -- affects driveshaft working length and angle
- Bore: 2.750" -- confirm against shaft OD
- Retention: BP -- Strap/bearing-plate retention -- more secure under high torque than snap ring styles.
- Note: HUB DIAMETER NOT GROUND
Specifications
- SKU: 6.5-4-4631
- Brand: UDS
- Series: 1810
- Spline Dia: 2.794
- Spline Count: 54
- Hub Dia: 0.000""
- CJ to End: 5.652"
- Through Hole: 2.750"
- Style: BP
- Notes: HUB DIAMETER NOT GROUND
Additional information
| Cj to end |
5.652 |
|---|---|
| Hub dia |
0.000" |
| Notes |
HUB DIAMETER NOT GROUND |
| Partn number |
6.5-4-4631 |
| Series |
1810 |
| Splines count |
54 |
| Splines dia |
2.794 |
| Style |
BP |
| Through hole |
2.750" |
