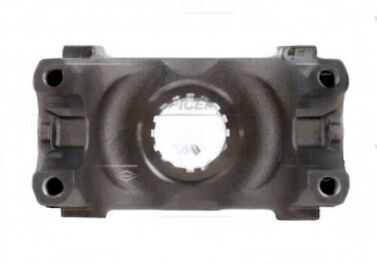

6.5-4-1891-1 – End Yoke – 1810 Series – 2.350″ Splines dia – 2.875″ Hub Dia
$174.04
1 in stock
14 People watching this product now!
Description
End yoke 6.5-4-1891-1, 1810. Specs: 2.350″ x 16 spline | 2.875″ hub dia | 5.500″” CJ-to-end | 2.750″ bore. COUPLING SHAFT YOKE. Spline count and series must match.
Full Description
If you're chasing a vibration that changes with driveshaft angle, check the end yoke first. Worn splines or cracked ears on the 6.5-4-1891-1 will cause exactly that.
6.5-4-1891-1 End Yoke Specifications & Series
The 1810 series is the standard for Class 7-8 commercial vehicles and heavy industrial equipment. Specs for the 6.5-4-1891-1 end yoke -- 2.350" x 16 spline | 2.875" hub dia | 5.500"" CJ-to-end | 2.750" bore. Additional: COUPLING SHAFT YOKE.
Spline engagement must be full depth -- a yoke that only partially engages the shaft will spin loose under load.
Key Features
- Series: 1810 -- Class 7-8 commercial vehicles and heavy industrial equipment
- Spline: 2.350" x 16 -- must match axle/T-case shaft exactly
- Hub dia: 2.875" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 5.500"" -- affects driveshaft working length and angle
- Bore: 2.750" -- confirm against shaft OD
- Retention: HR -- verify against your yoke configuration
- Note: COUPLING SHAFT YOKE
Specifications
- SKU: 6.5-4-1891-1
- Brand: UDS
- Series: 1810
- Spline Dia: 2.350"
- Spline Count: 16
- Hub Dia: 2.875"
- CJ to End: 5.500""
- Through Hole: 2.750"
- Style: HR
- Notes: COUPLING SHAFT YOKE
Additional information
| Cj to end | 5.500" |
|---|---|
| Hub dia | 2.875 |
| Notes | COUPLING SHAFT YOKE |
| Partn number | 6.5-4-1891-1 |
| Series | 1810 |
| Splines count | 16 |
| Splines dia | 2.350" |
| Style | HR |
| Through hole | 2.750" |
