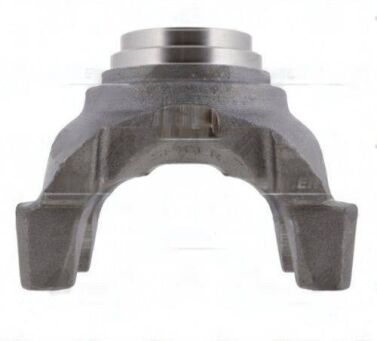

6-4-7481-1 – End Yoke – 2.390″ Splines Dia – 2.875″ Hub Dia – 46 Spline
$114.32
1 in stock
17 People watching this product now!
Description
End yoke 6-4-7481-1, 1710. Specs: 2.390″ x 46 spline | 2.875″ hub dia | 4.938″ CJ-to-end | 2.750″ bore. Spline count and series must match.
Full Description
End yoke failures are usually visible: worn splines, cracked ears, or corrosion at the cap bores. The 6-4-7481-1 is the correct 1710 series replacement.
6-4-7481-1 End Yoke Specifications & Series
The 1710 series is the standard for Class 6-7 vocational trucks and heavy industrial drivetrains. Specs for the 6-4-7481-1 end yoke -- 2.390" x 46 spline | 2.875" hub dia | 4.938" CJ-to-end | 2.750" bore.
Spline engagement must be full depth -- a yoke that only partially engages the shaft will spin loose under load.
Key Features
- Series: 1710 -- Class 6-7 vocational trucks and heavy industrial drivetrains
- Spline: 2.390" x 46 -- must match axle/T-case shaft exactly
- Hub dia: 2.875" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 4.938" -- affects driveshaft working length and angle
- Bore: 2.750" -- confirm against shaft OD
- Retention: HR -- verify against your yoke configuration
Specifications
- SKU: 6-4-7481-1
- Brand: UDS
- Series: 1710
- Spline Dia: 2.390"
- Spline Count: 46
- Hub Dia: 2.875"
- CJ to End: 4.938"
- Through Hole: 2.750"
- Style: HR
Additional information
| Cj to end | 4.938 |
|---|---|
| Hub dia | 2.875 |
| Partn number | 6-4-7481-1 |
| Series | 1710 |
| Splines count | 46 |
| Splines dia | 2.390" |
| Style | HR |
| Through hole | 2.750" |
