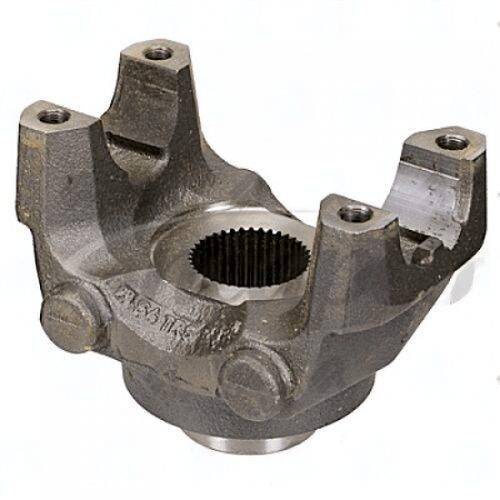

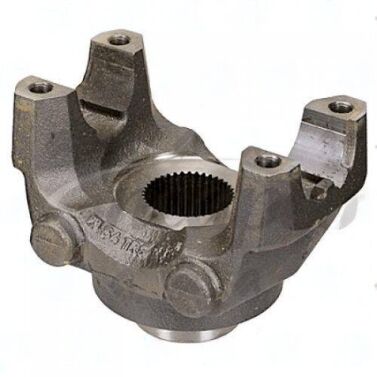

6-4-7141-1 – End Yoke – 1710 Series – 1.998″ Splines Dia – 2.810″ Hub Dia
$136.47
1 in stock
12 People watching this product now!
Description
End yoke 6-4-7141-1, 1710. Specs: 1.998 x 38 spline | 2.810″” hub dia | 5.000″” CJ-to-end | 3.000″ bore. COUPLING SHAFT YOKE. Spline count and series must match.
Full Description
Correct end yoke installation means the splines engage fully and the snap ring or nut seats solidly. The 6-4-7141-1 end yoke is machined to that exact shaft spec.
6-4-7141-1 End Yoke Specifications & Series
The 1710 series is the standard for Class 6-7 vocational trucks and heavy industrial drivetrains. Specs for the 6-4-7141-1 end yoke -- 1.998 x 38 spline | 2.810"" hub dia | 5.000"" CJ-to-end | 3.000" bore. Additional: COUPLING SHAFT YOKE.
Spline engagement must be full depth -- a yoke that only partially engages the shaft will spin loose under load.
Key Features
- Series: 1710 -- Class 6-7 vocational trucks and heavy industrial drivetrains
- Spline: 1.998 x 38 -- must match axle/T-case shaft exactly
- Hub dia: 2.810"" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 5.000"" -- affects driveshaft working length and angle
- Bore: 3.000" -- confirm against shaft OD
- Retention: HR -- verify against your yoke configuration
- Note: COUPLING SHAFT YOKE
Specifications
- SKU: 6-4-7141-1
- Brand: UDS
- Series: 1710
- Spline Dia: 1.998
- Spline Count: 38
- Hub Dia: 2.810""
- CJ to End: 5.000""
- Through Hole: 3.000"
- Style: HR
- Notes: COUPLING SHAFT YOKE
Additional information
| Cj to end | 5.000" |
|---|---|
| Hub dia | 2.810" |
| Notes | COUPLING SHAFT YOKE |
| Partn number | 6-4-7141-1 |
| Series | 1710 |
| Splines count | 38 |
| Splines dia | 1.998 |
| Style | HR |
| Through hole | 3.000" |
